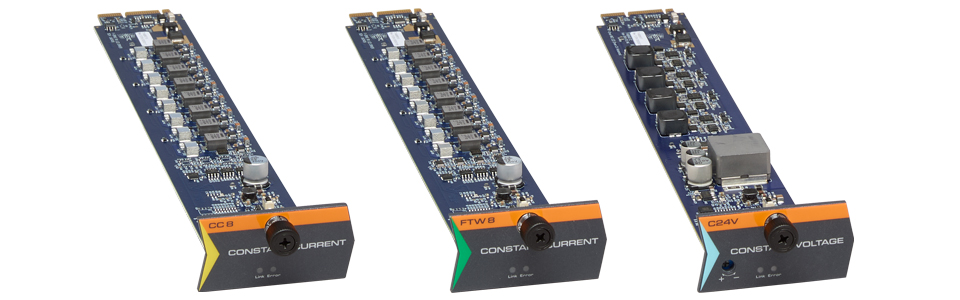

F-Drive RX Output Cards
F-Drive RX can power and control most LED fixtures thanks to its wide array of swappable driver cards for constant current and constant voltage LEDs, as well as specialized ETC luminaire requirements.
Constant Current: F-Drive RX CC 8 Card
Provides 8 channels of power and dimming for nearly any fixture that requires constant current control, including ETC’s line of architectural fixtures (Navis 50 and 100,
ArcSystem Pro One-Cell, Irideon FPZ and
WLZ, Source Four Mini LED)
. Supplies 200–700 mA drive current and 3–56 VDC string voltage.
Constant Voltage: F-Drive RX C24V Card
The solution for LED tape. Provides four individually-addressable channels for third-party 24 VDC luminaires and 24 VDC LED tape with support for multiple channels of control for color changing control.
ETC’s Fade to Warm Fixtures: F-Drive RX FTW 8 Card
Mimic the natural red shift of dimming halogen fixtures with this card and ETC’s Navis 50 and Navis 100 Fade to Warm fixtures. The card provides 8 channels for 8 fixtures, expanding to 24 Navis 50 fixtures when paired with an S-Box on each channel.
Navis Chroma Color-Changing fixtures: F-Drive RX Chroma 16 Card
The Chroma 16 Output Card expands the capabilities of the F-Drive RX platform by enabling intelligent control of Navis Chroma luminaires. It allows flexible combinations of up to 16 Navis 50 Chroma fixtures or 8 Navis 100 Chroma fixtures.
ArcLamp LED Fixtures: F-Drive RX ArcLamp Card
ArcLamp is the perfect LED lamp for chandeliers, sconces, wall lights, proscenium lights and more. The ArcLamp output card can drive up to 52 ArcLamps, making it a high-density solution for retrofitting existing fixtures and new construction.
