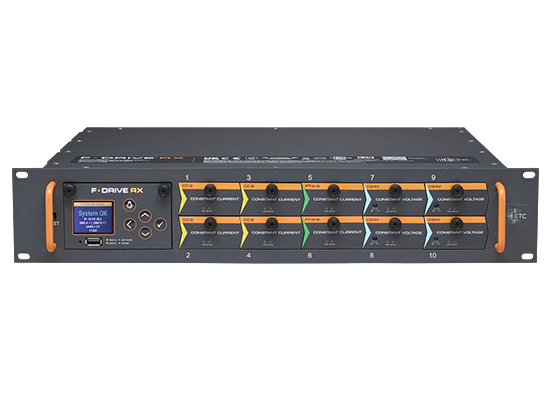

F-Drive RX

Compatibility and Capability

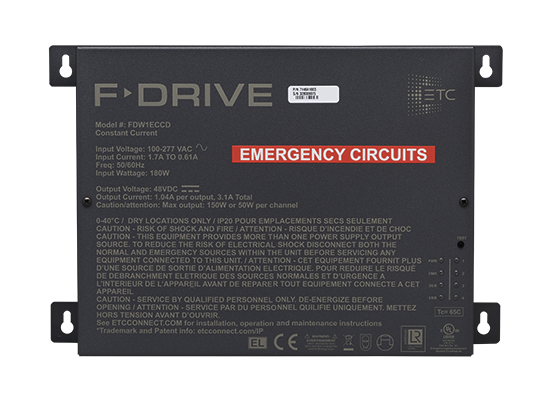

Thanks to emergency capabilities and ratings, including UL 924, it can be integrated into a system to allow fixtures to be utilized in both standard and emergency looks as part of a coherent emergency design.

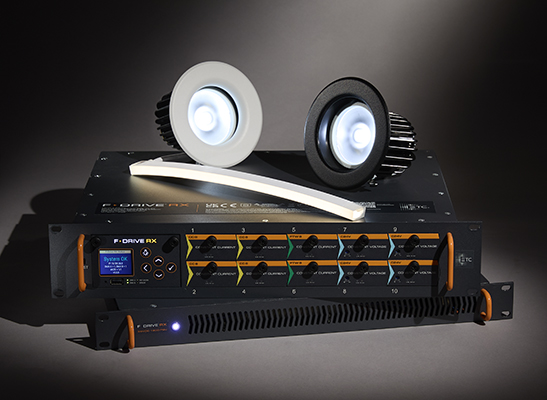

With F-Drive RX, installers can configure the system to work with a huge variety of different LED products, so that the install avoids multiple different control and driver systems spread all over an installation. High-end fixtures and LED tape can be controlled from a single centralized source.

Simple and Safe

The F-Drive RX simplifies system design and installation, too.

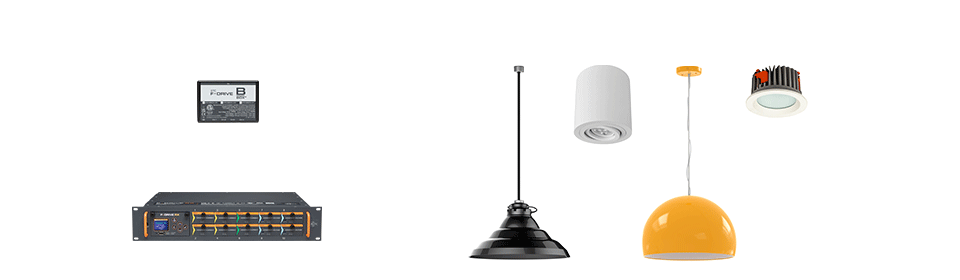

Thanks to the F-Drive RX’s inventive design, power is delivered to each fixture via Cat6 cable, revolutionizing system installation and maintenance. Because Cat6 cable is low-voltage, no conduit or high-voltage labor is involved. Since the cable doesn’t need high-voltage containment, installers can simply run the cable in trays without having to bend conduit. Installations, service, and maintenance can be performed without requiring disruptive high-voltage lockout/tagout procedures. Any trained technician can terminate the cables at F-Drive RX rack.

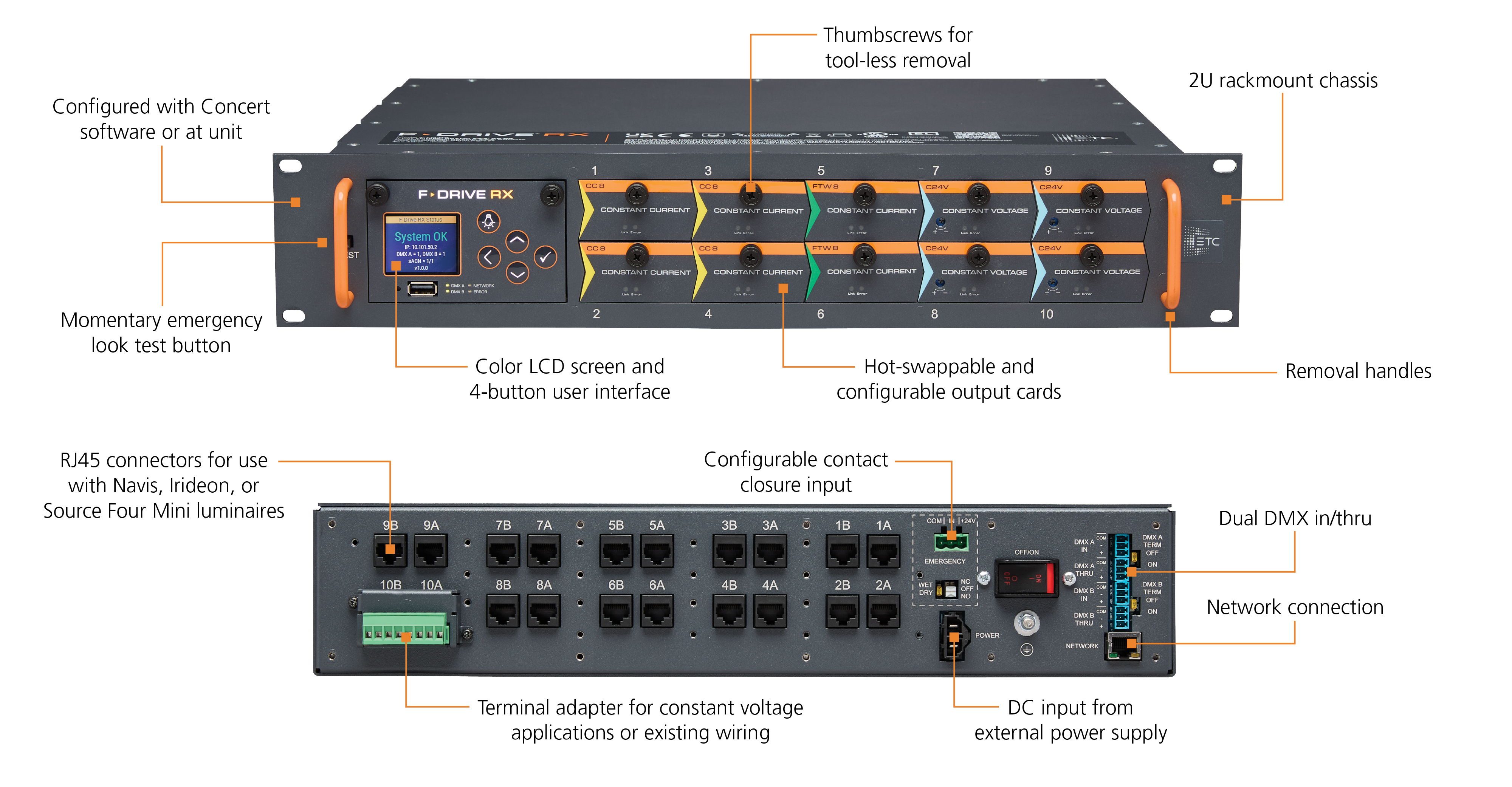

Each F-Drive RX can handle dozens to hundreds of fixtures from one rack-mount unit. No more hiding drivers in dropped ceilings or other inaccessible locations that need to be returned to for every lighting repair. Configuration with ETC Concert or the onboard UI make it simple to program ahead of time or on site.

Maintenance is similarly simplified. Because the power is all low-voltage, facilities personnel—not electricians—can swap luminaires and drivers. F-Drive RX output cards are hot-swappable, too, so you don’t have to close an entire location to fix a few luminaires. No waiting for off-hours or scheduling a specialist. Maintenance staff can quickly and easily make the necessary updates.
