Source Four Mini LED


  • Outstanding optics, Crystal-clear projection

    Ease of use, superior optics, crystal-clear image projection, and a bright, even field are packaged in a tiny fixture. A mere nine inches long, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theatres, and other small-scale installations.

    Download Datasheet

    • Output over 600 lumens
    • Three-plane stainless-steel shutter blade assembly
    • 19°, 26°, 36° and 50° interchangeable lens tubes
    • 12 W LED (35,000-hour life)
    • Portable, canopy-mount, and track-mount versions
    • E-size pattern holder
    • Gel media frame
    • Rotating barrel ± 175°
    • Insulated rear handle
    • Rugged die-cast aluminum construction
    • Black, white, silver or custom colors available
    • 5-year fixture warranty, and 10-year warranty on the array
    • Backed by ETC’s award-winning 24/7/365 service and support
    S4 Mini LED


    Source Four Mini Plus

    Need an even brighter fixture for your architectural installations? Check out Source Four Mini Plus! With incredible output, this uniquely styled fixture boasts great framing and gobo projection.

    Available in portable and canopy-mounted options for F-Drive, a 230 V DALI-controlled OneTrack option, and 120 V and 277 V OneTrack option.

    • Over 850 lumens
    • 60 watts
    • 19°, 26°, 36° and 50° field angles
    • 80/90 CRI
    • 2700 K, 3000 K, 4000 K, and 5000 K options
    SiteLink


    F-Drive compatible

    The Source Four Mini Plus readily pairs with F-Drive, ETC's centralized driver solution. The F-Drive compatible fixtures enable facilities to build more cost-effective lighting systems, all backed by a premium lighting control solution.

    F-Drive compatible


    Interested in trying Source Four Mini?

    Complete this form and a member of our team will be in touch!

    Request A Demo

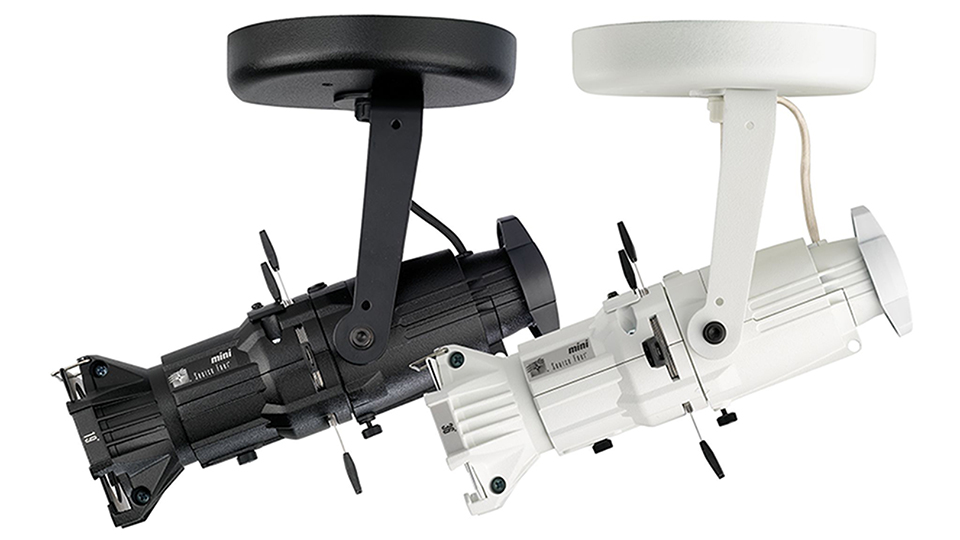

  • Canopy-mount Features


    Canopy-mount Features


    • 4.5 x 1.5" color-matched canopy
    • Canopy-mounting hardware for 4" ceiling junction box included
    • LED driver in canopy for hardwired 120V or 230/240V input
    • Available in F-Drive compatible versions

    Portable features


    Portable features


    • Yoke-mounted LED driver in color-matched case
    • 3' power cable and choice of Edison, UK or EU plug
    • Available in F-Drive compatible versions

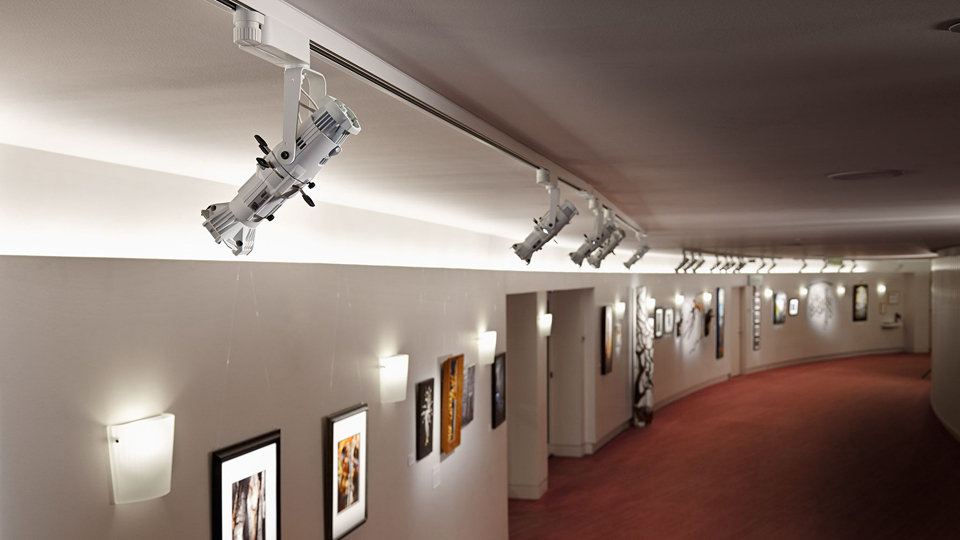

    Track-mount features


    Track-mount features


    • ETL-Listed and compatible with EUTRAC-brand track
    • Factory-installed, integral LED driver in color-matched (black or white) adapter
    • Source Four Mini Plus available with OneTrack DALI

  • download datasheet


    CONTROL OPTIONS TRACK CANOPY PORTABLE
    F-Drive   ✓ (120V/230V)
    + (120V/230V)    		 ✓ (120V/230V)
    + (120V/230V)
    Line Dimming ✓ (120V only)  ✓ (120V/230V)  ✓ (120V/230V)
    DMX Dimming + (120V/277V only) + (120V/230V)
    DALI Dimming + (230V only)

    + Plus Fixtures
    ✓ Standard Fixtures
