Lighting, your way
ArcSystem Navis luminaires deliver ease of installation, hassle-free maintenance, in-field customization, and beautiful light all in a sleek fixture design. Navis is optimized for use with
F-Drive, ETC’s award winning remote driver power and driver system. Rely on any Navis product for high-grade TIR optics, stepless dimming, and in-the-moment customization
within seconds.

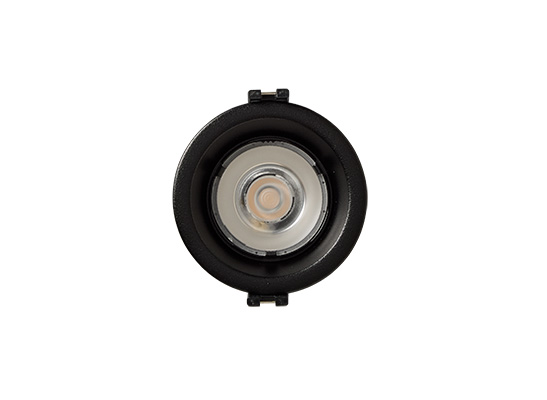

Navis 50
- Adjustable & Downlight
- 2”
- 600 lumens
- Damp rated
- 90+ CRI
- 15-, 25-, 40-, and 60-degree beam angle options
Navis 100
- 4”
- 1254 lumens
- Damp rated
- 90+ CRI
- 15-, 25-, 40-, and 60-degree beam angle options
Installation made easy
The design of the Navis luminaire covers every detail for seamless installation. Both Downlight and Adjustable variants are compatible with ArcSystem Ceiling Brackets and Goof Rings. Once your installation is complete, simply pop the magnetic
trim plate back on the luminaire for a sleek finish.
Downlight
Spring-action mounting clips hold the Navis luminaire securely in the ceiling, accommodating a ceiling thickness of 0.5 to 35 mm.
Adjustable
Wind-down clamps accommodate ceiling thicknesses from 0.5 to 20 mm. With a 30-degree tilt that doesn't break the ceiling plane, a 360-degree rotation, and a tool-operated pan/tilt lock, the Adjustable Navis luminaire can be focused to nearly any
direction.
Recognizing the luminaire’s advanced technology, the Illuminating Engineering Society has selected Navis 100 to be a part of its 2020 Progress Report.
Beautiful light in any application
All Navis LED options pack beautiful, bright optics in a small form factor with zero light leak at the rear. From restaurants and hospitality to auditorium and cruise ships, you can expect premium quality lighting from Navis LED fixtures..
Multiple array options
The Navis line is available in 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Color-Tunable, and 3000 K Fade to Warm. Fade to Warm can beautifully mimic the red-shift of an incandescent light source as it dims.
Customization within seconds
The modular fixture design makes it possible for you to customize your luminaires as you install or later on if you decide you need a design change. On the fly adjustments are easy with field-swappable primary / secondary optics and multiple magnetic
trim finish options.
Beam Angles
Choose from 15°, 25°, 40°, and 60° lenses at any time with the unique twist-and-click mounting mechanism.
Trim Plates
Magnetic trim plate accessories are simple to pop on and off of your fixtures to make aesthetic adjustments.
Optical Accessories
Navis optical accessories click into place easily, offering clear, frosted, hex louver, linear, and solite options. You can even combine optical accessories on top of each other for increased customization.
Pendant
Navis offers both Pendant and Surface Cylinder hardware that allows you to quickly transform the Navis 100 recessed luminaire. Simply slide the fixture into the Pendant or Surface Cylinder body to create your new fixture.

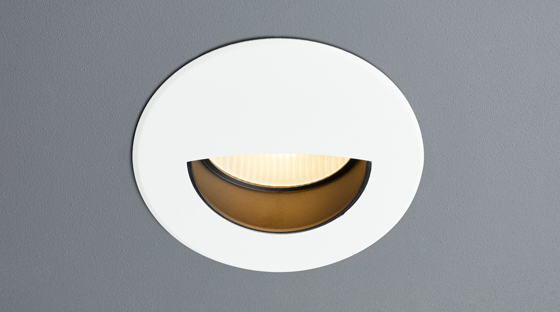

Wall Wash
An optional wall wash accessory is available, instantly transforming the Navis into a luminaire capable of providing a smooth blanket of light for a wall or corridor application.
Power within reach

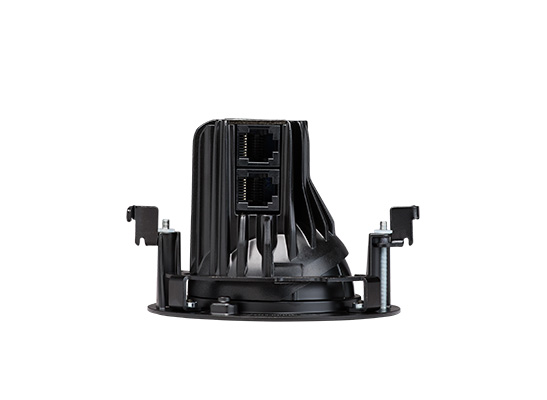

External driver technology moves critical components to accessible electrical rooms and cabinets. Designed for use with the ETC F-Drive LED driver system, Navis utilizes RJ45 in/thru connections. F-Drive provides a centralized, accessible power
solution facilitating hassle-free maintenance calls on Navis and other LED solutions in your space.
The ETC standard of color
The RGBW option for the Navis 100 contains many of the advanced features found in ETC's entertainment fixtures, including:
- Fully calibrated arrays for color consistency across multiple luminaires
- Thermal droop compensation to maintain light output when the luminaire reaches operating temperature
- Active power budgeting for maximum light output in saturated colors
ArcSystem Navis: Covering every detail
