| Controller Comparison |

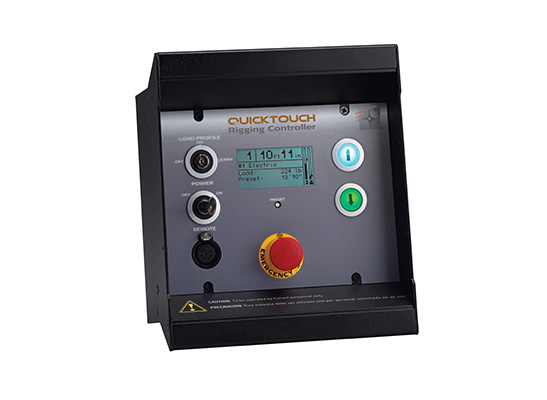

QuickTouch /

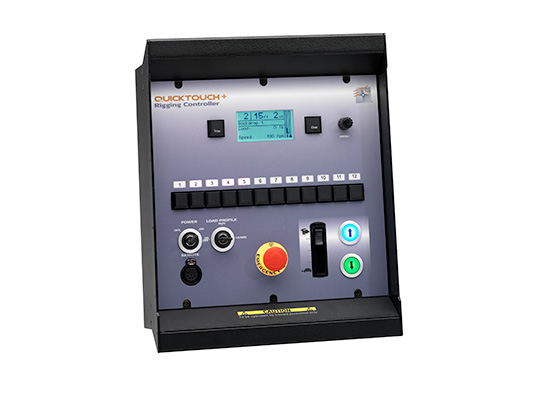

QuickTouch+ |

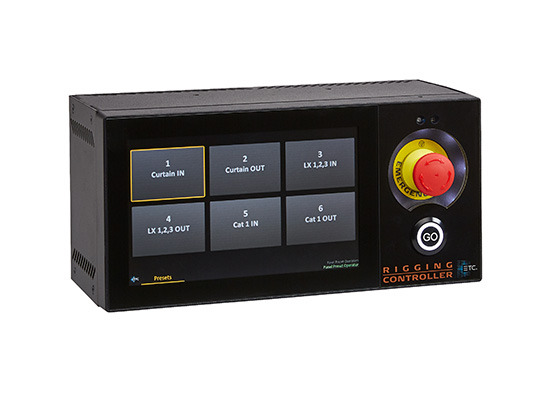

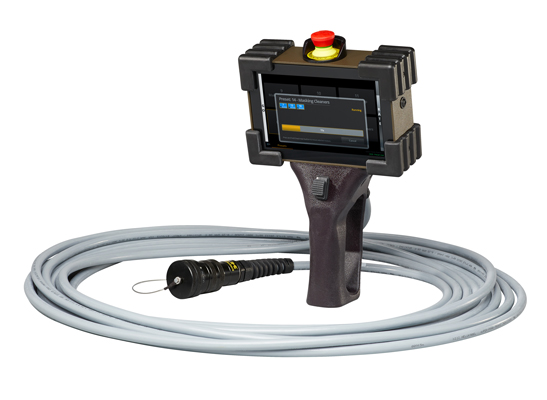

QuickTouch Preset/Handheld |

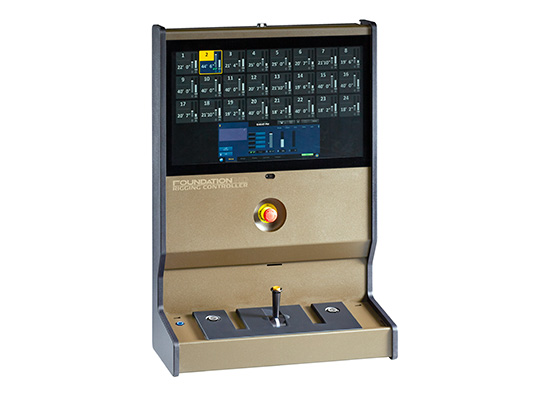

Foundation HD /

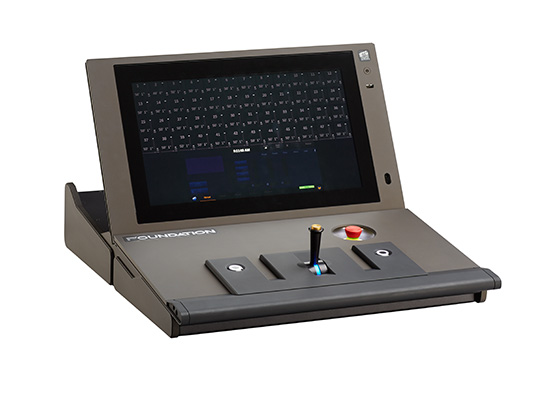

Foundation Desk |
| Axes supported |
1 – 24 |
8 – 96† |
48 – 192†‡ |
| Number of stored trims |
1 / 5 |
12 |
12 |
| Screen |
2.8” LCD |
7” multitouch |
18” / 17" multitouch |
| Number of control stations |
1 / 6 |
2 |
1+ Handheld ª |
| Supported E-stop stations |
3 |
3 |
6 |
| PIN lockout/multiple login levels |
2nd keyswitch |
PIN code |
PIN code |
| Fixed speed control |
✓* |
✓ |
✓ |
| Variable speed control (Manual) |
✓* |
✓ |
✓ |
| User-programmable soft limits |
✓* |
✓ |
✓ |
| Multiple axes display |
|
✓ |
✓ |
| User limit of maximum speed |
|
✓ |
✓ |
| Manual rate override |
✓*
|
Handheld only |
✓ |
| Move multiple axes in different directions |
|
✓ |
✓ |

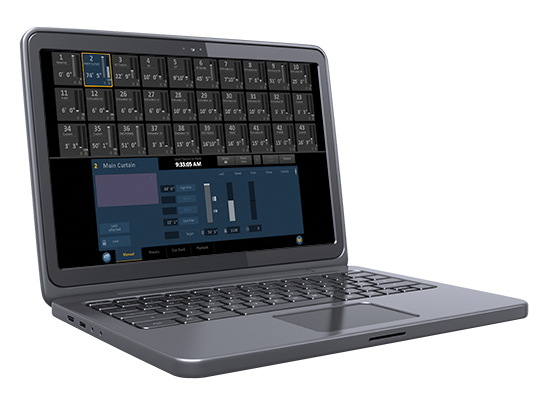

| PC client |
|
✓ |
✓ |
| Merge/multiple stations |
|
✓ |
✓ |
| OSC and string support |
|
✓ |
✓ |
| Preset record and play back |
|
✓ |
✓ |
| Preset rate override |
|
Handheld only |
✓ |
| Locked/Selection/Safe Groups |
|
|
✓ |
| Cue stack playback |
|
|
✓ |
| Cue rate override |
|
|
✓ |
| Cue stack edit |
|
|
✓ |
| User-programmable acceleration/deceleration ramps |
|
|
✓ |
| Show file support |
|
|
✓ |
