  • Hoists



    Sort by country or regulatory region to see which rigging products are available for your venue.

    Rigging Gear by Region



  • ETC Automated Hoists


    FlyPipe / FlyPipe Studio

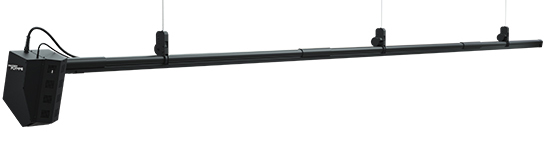

    Prodigy FlyPipe

    If you have under-utilized space that is crying out to be turned into something amazing, ETC has a rigging hoist to help you do just that.



    FlyPipe Studio


    Blackbox, broadcast, and studio spaces require small hoists to do the heavy lifting. Meet FlyPipe Studio.

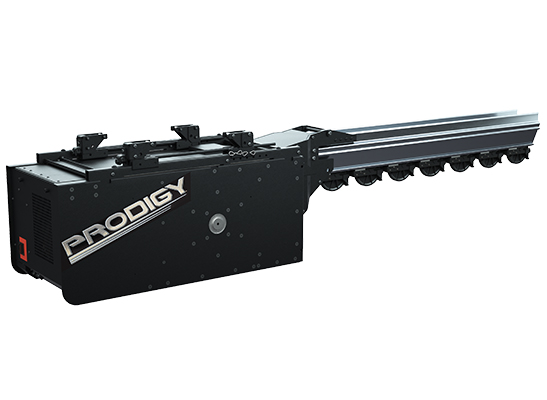

    Prodigy P1


    Prodigy P1

    Simple and affordable automated hoists that do the heavy lifting for you.

    Prodigy P1
    Downloads

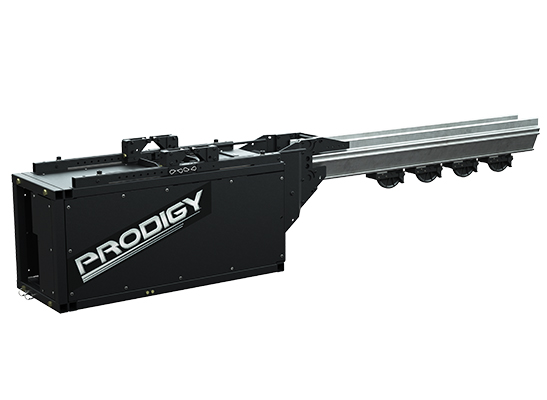

    P2 (UL only) / P2 300/600/900 (CE only)

    P2 (UL only) / P2 300/600/900 (CE only)

    P2 (UL only)

    Simple and affordable automated hoists that do the heavy lifting for you.


    P2 300/600/900 (CE only)

    If you thought that the safety, convenience, and flexibility of an automated hoist system were out of reach because of the size of your budget or your venue, think again.

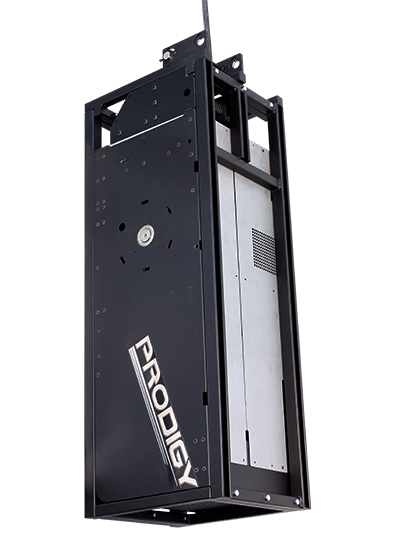

    EXO


    EXO








    Simple and affordable automated hoists that do the heavy lifting for you.

    EXO
    Downloads

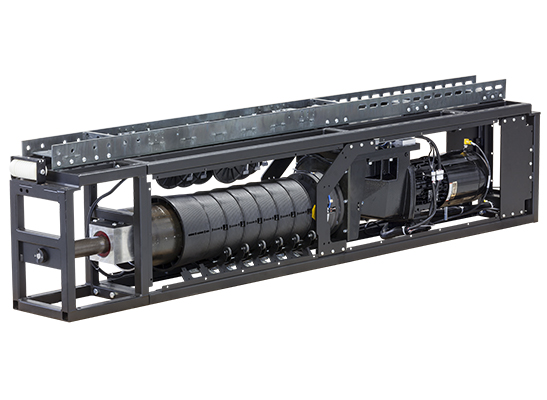

    P75


    P75

    Simple and affordable automated hoists that do the heavy lifting for you.

    Prodigy P75
    Downloads

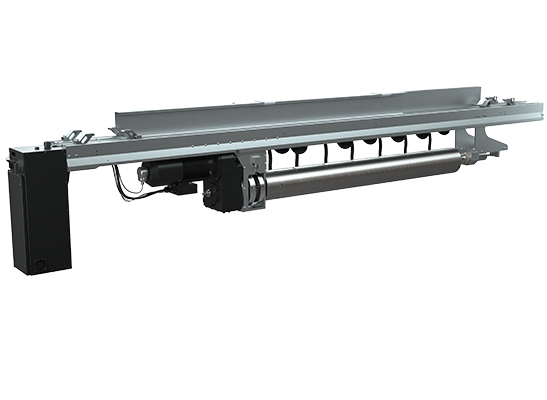

    Vortek


    Vortek

    Simple and affordable automated hoists that do the heavy lifting for you.

    Vortek
    Downloads

    Source Four LED Series 3


    Source Four Series 3 Red


    Nuanced color. Ultimate brightness.

    Source Four LED Series 3 takes quality to the next level. The top-of-the-line Lustr X8 array brings nuanced color without sacrificing brightness. With wireless DMX/RDM and NFC technology built in, and the unmatched ETC warranty, you’ll love what Series 3 does for your stage. Add XDLT lens tubes for the ultimate brightness from the longest throws.

    • Daylight HDR - tunable white-light
    • Lustr X8 - widest color gamut for the richest, brightest colors
    • Fully adaptable with CYC and Fresnel Options

    Learn more →


    Source Four LED Series 2

    Source Four LED Series 2


    X7 shines in the limelight.

    Source Four LED Series 2 Changed the way we thought about LED lighting. The innovative Lustr x7 array with lime, added a richness to color that we hadn’t seen before. With 54,000 hour L70 lifetime ratings and smooth dimming with minimal color shift, Series 2 brings high quality to your stage.

    • Lustr X7 - The addition of red and lime mean better color matching.
    • Fully adaptable with CYC and Fresnel Options!

    Learn more →

    Desire


    Desire Family


    LED fixtures that changed the market

    Desire has an entire family of options for every installation with D22, D40, and D60 LED fixtures! Options for both interior and exterior, and yoke, canopy, or track mounting. All featuring the Lustr x7 color mixing system that provides bold statement colors and soft pastels from a single array.

    Desire D22

    Desire D40

    Desire D60


    Desire Fresnel

    Discover a modern classic

    Desire Fresnel is the ultimate in form and function. We took the classic workhorse fixture and brought it into this century. With an impressive 13-55 degree zoom, X8 array, NFC and Multiverse wireless communications, and the smoothest wash you’d expect from a Fresnel.

    Learn More →


    fos/4

    fos/4 family


    Standards that are far from standard.

    Studio fixtures that give you the brightness you need, the color you’ve been craving, and the control you deserve. You’re uncompromising and discerning. Your tools should be too.

    • The Lustr X8 array features Deep Red and transforms how you see skin tones. The Daylight HDR array brings you the ultimate tunable white light with natural warmth when rendering skin tones.
    • Push and pull information including fixture setup from your mobile device using NFC.
    • Multiverse wireless DMX/RDM technology brings scalability of lighting data like never before.
    • The user interface was designed with your workflow in mind. Features are intuitive without compromising efficiency.

    fos/4 Panel Lights

    fos/4 Fresnel

    Check out our other TV and film products at studio.etcconnect.com


    ColorSource V


    ColorSource V Family


    Because everyone should have access to quality light.

    Taking the best of what’s come before, ColorSource V includes many of the features you’ll see in our premiere fixtures at an accessible price point. With Multiverse® wireless, NFC, and a five-color array that brings both soft pastels and bold, punchy colors, all that’s left for you to do is choose between spot or wash!

    Spot V

    Fresnel V

    Spot VXT


    ColorSource

    Colorsource Family

    Rich, emotional color for every location

    ColorSource fixtures offer incredible output, stunning colors, and perfect dimming at an affordable price. From middle schools to opera houses, and from houses of worship to large-scale, immersive architectural installations, ColorSource is the natural choice when budgets are modest, but expectations are high.

    ColorSource PAR

    ColorSource Linear

    ColorSource CYC


    CS Spot Jr Prod Shot

    Small size. Small price tag. Big performance.

    ColorSource jr gives you more of what you love at a fraction of the cost AND a fraction of the size and weight.

    ColorSource Spot jr

    ColorSource PAR jr


    Source 4WRD Color II

    Source 4WRD Color Family

    Want more than just white light?

    Upcycle your fixtures with Source 4WRD Color II. Transform your existing Source Four incandescent profile into an RGBA LED fixture, unlocking the world of additive color mixing, saturated washes, and quick color changes!

    Learn more →


    Source 4WRD II

    Source 4WRD II Family

    Upgrade your rig without breaking the bank.

    Looking to upgrade on a budget? Add to your inventory or retrofit your Source Four incandescent fixtures with Source 4WRD II. This high output, nuanced LED brings some of the best white-light LED technology on the market. Retrofit a luminaire in less than 5 minutes, with no extra tools. Source 4WRD II works with line dimming, so you can plug right into your current system!

    Learn more →


    Source Four Mini LED

    S4 Mini Portable clip

    Good things come in small packages.

    The Source Four Mini is everything you expect from the Source Four brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in an LED fixture that's just one-third the size of a traditional Source Four. A mere nine inches (230 mm) long, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theatres, and other small scale installations where size matters. Available as a canopy, portable, or track-mount option!

    Learn more →


    Dataflash 5000

    Dataflash 5000

    It’s time to flash forward.

    High End Systems Dataflash 5000 breathes new life into a long-time favorite. Exceptionally bright, Dataflash 5000 is capable of 52,000+ lumens for high-energy strobing. The RGB LED engine delivers bold, vivid colors, while the 3200-7500 K white light center brings the intensity. Additionally, Dataflash 5000 fits the spec for festivals and outdoor gigs with an IP65 rating.

    Learn more →

  • Counterweight Rigging


    EXO

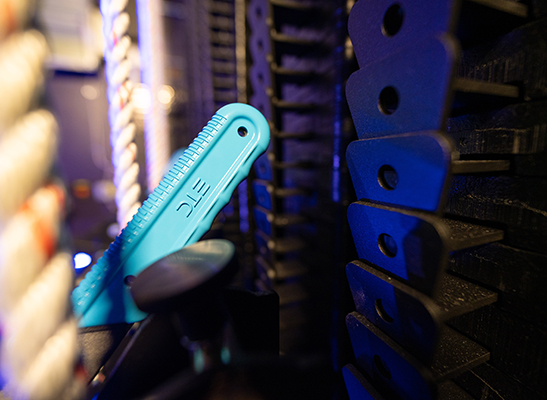

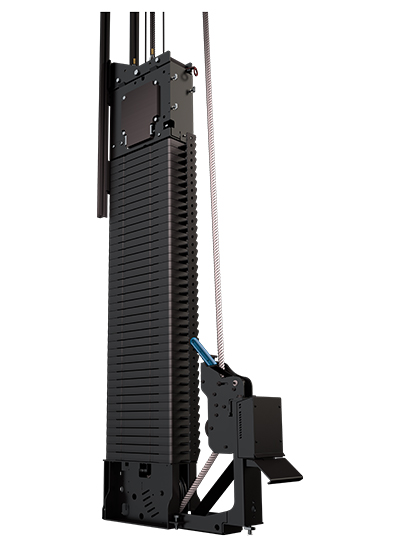

    Prodigy Balance




    A new way of thinking about counterweight systems, ETC is bringing the art back to rigging with Prodigy Balance.

    Prodigy Balance
    Downloads

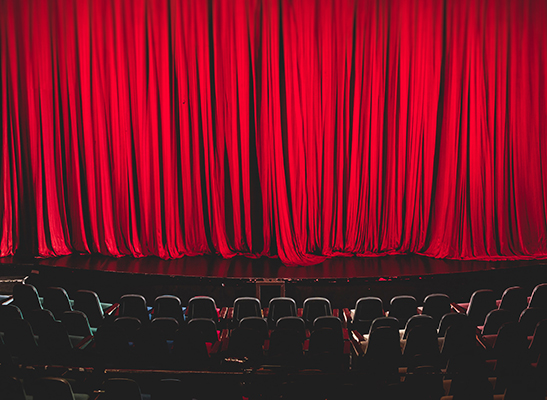

    3rd Party Integration


    Control winches, curtain motors, and projection screens with ETC’s third-party integration solutions.

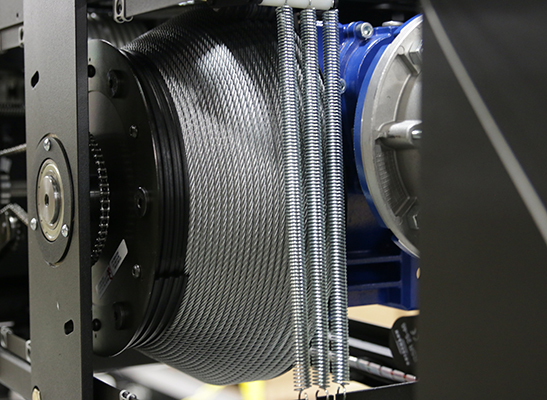

    Custom


    Looking for rigging hoists for large or unconventional spaces? View our portfolio of custom options.


  • features that push innovation


  • Rigging Hoists

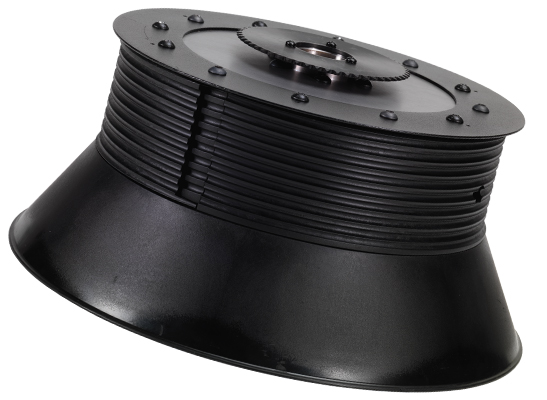

    Sloped drum


    Drum design dramatically reduces the space needed for a motorized winch. Small drum size also means a streamlined Powerhead for the most compact and manageable rigging system on the market.

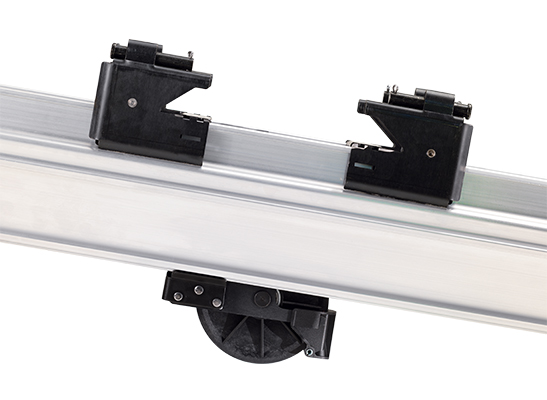

    Compression tube


    Rigging anywhere. The smart backbone of the Prodigy system absorbs and disperses lateral loads on building steel. Simply lift and snap into Mounting Brackets for lab-saving installation.

    Rigging Hoists


    Rigging Hoists

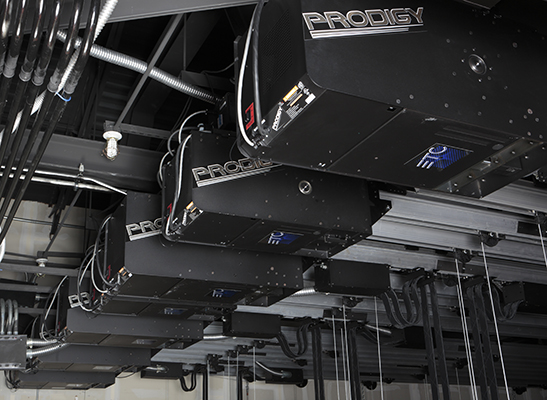

    Plug and play


    Testing and configuration in the factory so it’ll work when it shows up on site with minimal set up.



    Ultimate in safety


    ETC wants the user-experience to be the best possible from the moment the system is turned on. Every Prodigy hoist is tested under full load before it leaves the factory. All electrical and electronic connections, lift-line integrity and terminations, limit-switch functions, operation switches, and other components are tested by ETC factory technicians. Each hoist receives final inspection by quality managers before the equipment is packaged and shipped. These tests and inspections assure the installer and the owner that they are in possession of equipment that is not only safe and reliable but which will do the job from the first moment of use.

    Rigging Hoists


    Rigging Gear by Region



  • Rigging Hoists

    24/7/365 support


    Contact us when you need us. We promise we have real people on the line ready to answer your questions.

    CONTACT SUPPORT

    Rigging Hoists

    Rigging support


    Need help with your rigging system? Visit the ETC Knowledge Base for helpful resources and articles.

    RIGGING SUPPORT

    Rigging Hoists

    Find a dealer


    Find more information on ETC Rigging by contacting an authorized ETC rigging dealer.

    FIND A DEALER

    Rigging Hoists

    Request a demo


    Want to learn more about our automated rigging systems? Complete this form and a member of our team will be in touch!

    REQUEST A DEMO



  • Automated Hoist Comparison


    Hoist Comparison FlyPipe FlyPipe Studio P2 - 300/600/900 P1 EXO P75 NXT
    Wire rope size Dual 1/8” 3.1 mm Dual 1/8” 3.1 mm 3/16”
    5 mm
    3/16”
    5 mm
    3/16”
    5 mm
    1/4”
    6.3 mm
    3/16”
    5 mm
    Max. number of lines 6 TwinLine pairs 2 TwinLine pairs 8 8 8 8 7
    Min. number of lines 2 TwinLine pairs 2 TwinLine pairs 2 3 - 5 3 - 5 3 - 7 3 - 5
    Underhung
    Upright
    Vertical
    Prodigy cable management support
    Pantograph cable management support
    Helix cable management support
    Swag cable management support
    Compression Tube support
    Slack line detection SmartSlack SmartSlack
    Load cell
    Lift distance 50 ft
    15 m
    23 ft
    7 m
    50 ft
    15 m
    50 ft
    15 m
    50 ft
    15 m
    75 ft
    23 m
    62 ft / 100 ft
    19 m / 30 m
    UL/ETL UL UL UL UL UL UL UL
    DGUV 17/18 600 & 900 only
    Lifting capacity 500 lb
    225 kg
    300 lb
    136 kg
    650 lb
    300 kg/600 kg/900 kg
    900-2000 lb
    400-900 kg
    900-2000 lb
    400-900 kg
    1200-3300 lb
    540-1500 kg
    800-2000 lb
    500-900 kg
    Secondary load arrest device SafeStop SafeStop Self-locking gearbox
    (for 300 only)
    Electro-mechanical Electro-mechanical Electro-mechanical Mechanical
    Soft Start/Stop Standard Standard Optional Optional Optional Optional Standard
    Fixed speed (208V/60Hz) 20 fpm
    10 cm/s
    20 fpm
    10 cm/s
    23 fpm
    12 cm/s
    30 fpm
    15 cm/s
    30 fpm
    15 cm/s
    15 / 20 fpm
    7 / 10 cm/s
    20 fpm
    10 cm/s
    Fixed speed (400V/50Hz) 20 fpm
    10 cm/s
    20 fpm
    10 cm/s
    20 fpm
    10 cm/s
    30 fpm
    15 cm/s
    - - 0-180 fpm
    0-0.9 m/s
    Fixed speed (480V/60Hz) 20 fpm
    10 cm/s
    20 fpm
    10 cm/s
    25 fpm
    13 cm/s
    30 fpm
    15 cm/s
    30 fpm
    15 cm/s
    20 fpm
    10 cm/s
    -
    Variable speed - - - 0-180 fpm
    0.9 m/s
    0-180 fpm
    0.9 m/s
    0-180 fpm
    0.9 m/s
    0-180 fpm
    0.9 m/s


    Download ETC Rigging brochure
