Source Four Mini LED

Big Source Four attitude, small size

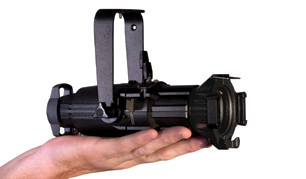

Good things come in small packages. The Source Four Mini LED is everything you expect from the Source Four brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in a tiny fixture that's just one-third the size of a traditional Source Four. A mere nine inches long, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters, and other small-scale installations where size matters.

The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 2.5-inch diameter lens. It comes in a portable version with a miniature C-clamp, a canopy-mount design with an integral transformer, or a track-mounted design. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.

Features for all Source Four Mini models

• 19°, 26°, 36° and 50° field angles
• 9" long, 2.5" diameter
• 12W LED (35,000-hour life)
• Portable, canopy-mount and track-mount versions
• E-size pattern holder
• Gel media frame
• Rotating barrel ± 175°
• Three-plane stainless-steel shutter blade assembly
• Insulated rear handle
• Rugged die-cast aluminum construction
• Black, white, silver or custom colors available

Canopy-mount features

• 4.5 x 1.5" color-matched canopy
• Canopy-mounting hardware for 4" ceiling junction box included
• LED driver in canopy for hardwired 120V or 230/240V input
• Available as Source Four Mini for F-Drive

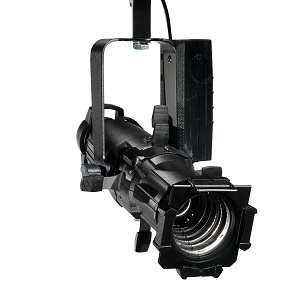

Portable features

• Yoke-mounted LED driver in color-matched case
• Miniature C-clamp included
• 3' power cable and choice of Edison, UK or EU plug
• Available as Source Four Mini for F-Drive
