Response 0-10V Gateway

Color

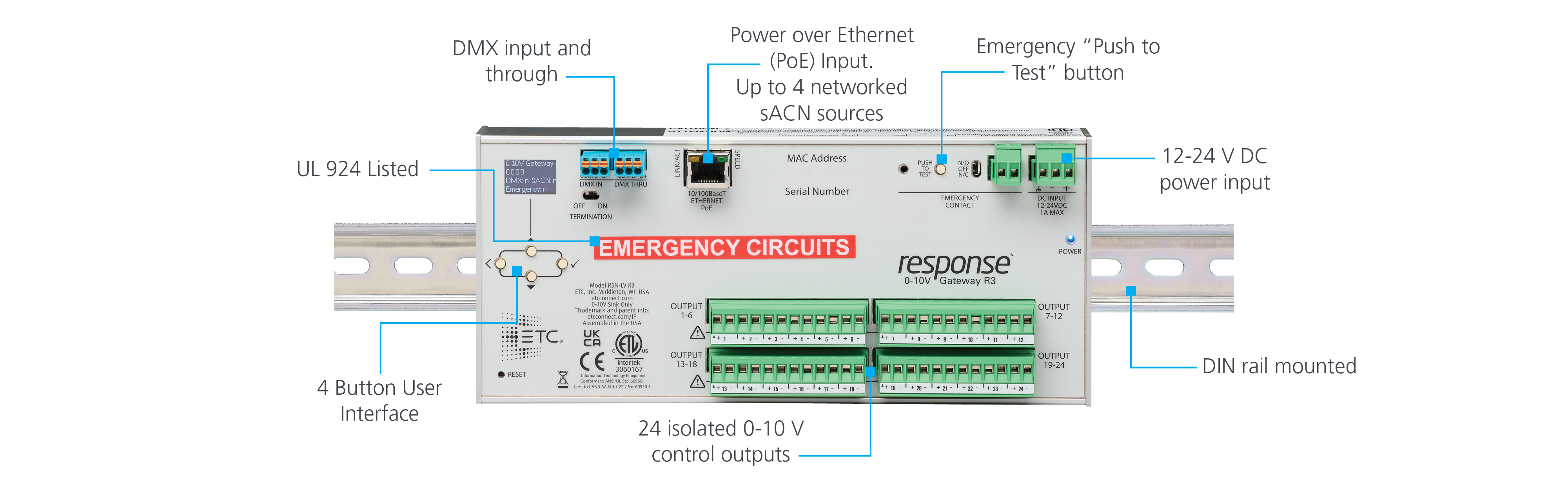

The Response 0-10V Gateway R3 accepts sACN or DMX control input and provides 24 channels of 0-10 V sink control. It is ideal for both retrofit and new power-control system installations that use four-wire LED drivers and ballasts.







Response 0-10V Gateway



Emergency Qualified

Emergency lighting doesn’t have to be ugly! ETC’s Response 0-10V Gateway R3 is UL 924 listed, allowing you to use 0-10 V UL 924 listed Directly Controlled Emergency Luminaires (DCELs) in your emergency lighting. The contact closure input will send emergency fixtures to a predetermined level in an emergency situation. The “Push to Test” button gives you an easy way to test your emergency look.


Customizable

DMX or sACN? Both? The 0-10V Gateway R3 accepts DMX and sACN as inputs and allows users to set precedence to be sure the right signal sets the right look. Users can manage preferences in ETC’s Concert software or via the onboard four-button interface.

Want a custom dimming curve? Users can build their own custom dimming curve or take advantage of a pre-programmed curve in the Gateway’s library.

The Gateway can be mounted anywhere standard DIN rail is installed. ETC's variety of DIN rail enclosures ensure you have a secure, convenient place to house your DIN rail devices.
