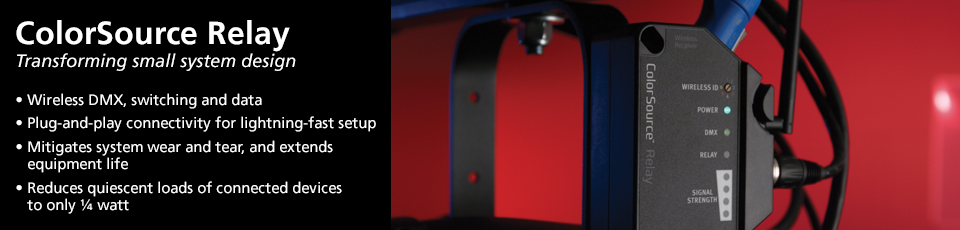

The ColorSource Relay combines power sequencing and data distribution in a portable plug-and-play format. Its electrical relay provides safe, automatic power control for connected fixtures. With wired and Multiverse® wireless DMX options, it will reliably receive DMX signal nearly anywhere, even in crowded environments, and output wired DMX to connected fixtures.
With the ColorSource Relay, you have everything you need to control your lights wherever you want to put them.
Houses of worship can easily supplement current lighting in existing facilities or create effective and dynamic lighting in non-traditional locations.
Schools can easily and safely transform multi-use facilities into performance spaces.
Temporary lighting positions backstage or even in the rig benefit from power and data control.
Special events are even more special. One power cable and wireless DMX keep the party moving with quick setup and strike.
City Theatrical Multiverse wireless DMX is a powerful addition to the ColorSource Relay system. Multiverse couples efficient use of radio energy with intelligent management of DMX signal broadcasting to create a resilient and far-reaching wireless DMX network.
It’s been proven to work better in crowded wireless environments, so your signal can get through no matter where you are.
Both the Multiverse SHoW Baby and ColorSource Relay require minimal setup and zero programming before use.
Simply connect hard-wired DMX (Multiverse SHoW Baby or Multiverse Node) or sACN (Multiverse Transmitter) to automatically send wireless DMX to any ColorSource Relay Multiverse Receiver within a 100-meter (328-foot) range. Take them out, plug them in, and your new relay system is fully operational!
ColorSource Relay Multiverse Receiver is also compatible with the first generation of ColorSource Relay transmitters (CST-W) in legacy SHoW DMX mode. See the ColorSource Relay Quick Guide for details.
Whatever your system, ColorSource Relay makes power and data management easy.
If you have plenty of DMX ports, the hard-wired ColorSource Relay DMX is perfect to fine-tune your power distribution.
The ColorSource Relay Multiverse Receiver gives you wireless capabilities. It works with the first generation of ColorSource equipment, or with the new Multiverse technology.
A Multiverse SHoW Baby Transmitter sends one universe of DMX to receivers up to 100 meters away, with six selectable SHoW IDs. Unlocking the Multiverse options via RDM gives users access to 147 more SHoW IDs, ensuring a clean DMX signal no matter the environment.
For systems that need the most universes, the Multiverse Transmitter is capable of transmitting up to 10 universes of DMX over the 2.4 GHz bandwidth, perfect for ColorSource relay Multiverse Receivers. The Multiverse Transmitter can receive DMX via a 5-pin XLR connection or via sACN or ArtNet, thanks
to a built-in ethernet port.
Both Wired and Multiverse Receiver models have power and data capabilities to handle up to 16 amps of connected fixtures. Auto-sequencing and zero-cross switching mitigate inrush nuisances automatically. Each Relay can support up to 32 DMX or RDM receivers.
