Eos Processors

  • Eos control –
    with or without the console.


    Eos in a box

    Sometimes you need the brains of an Eos system, but not the hands-on hardware. An Eos processor can expand the flexibility and security of your lighting control system, whether you’re using it as a backup to protect your show, a remote programming station, or as a standalone controller for automated or long-running productions.

    You can monitor and control your rig directly from your equipment rack, or build your own remote workstation with
    USB-connectable devices – including touchscreens, Eos Fader Wings, and the Eos Programming Wing.

    Learn more about building your Eos Family system →


    Which processor is right for you?

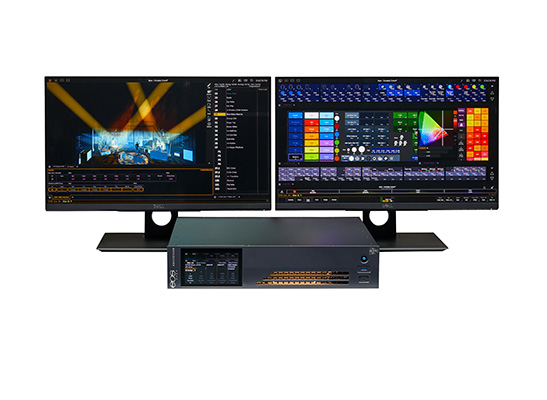

    Eos Apex Processor

    24K outputs

    With the same powerful processing as the Apex consoles and network connections through four Gigabit Ethernet and two SFP+ ports, this rack-mount device can drive a high-powered rig on its own or serve as a backup to keep large systems running safely. You can even monitor and interact with your system using the built-in haptic touchscreen.

    Eos Apex Datasheet

    Eos Apex Processor

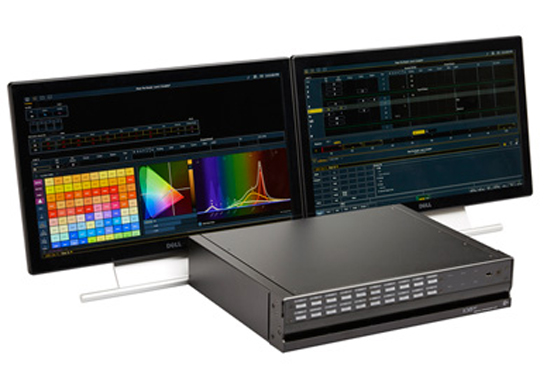

    Ion Xe RPU

    2K or 12K outputs

    With the same power as an Ion Xe console, this rack-mount device is the perfect backup or controller for any mid-sized lighting system. The face panel features 20 user-programmable buttons and LED indicators that help you monitor your RPU’s status and system synchronization.

    Ion Xe RPU Datasheet

    Ion Xe RPU

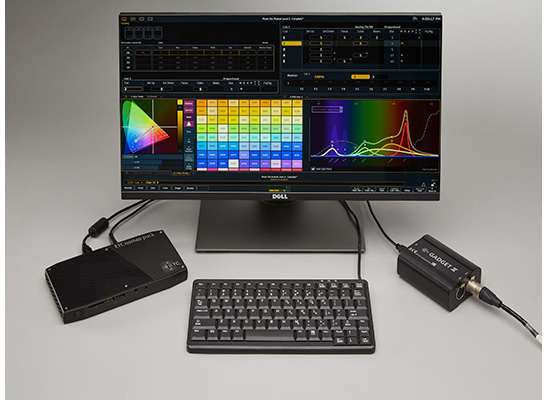

    ETC Puck

    1K or 6K outputs

    This ETC-supported mini-PC can function as a cost-effective backup or standalone controller for small-scale rigs or as a client in your Eos system – whether as a remote programming station or a video interface.

    ETC Puck Datasheet

    Eos Puck

    ETCnomad

    1K or 6K outputs

    In addition to providing convenient on-the-go programming from your Mac or PC, an ETCnomad software key can turn your computer into a primary or backup controller or a remote workstation for your Eos system.

    Learn more about ETCnomad →

    ETCnomad Datasheet

    ETCnomad



    Eos Apex Processor
    Eos Apex Processor
    Ion Xe RPU
    Ion Xe RPU
    Ion Xe RPU
    ETC Puck
    ETCnomad
    ETCnomad
    Output Addresses 24,576 2,048 or 12,288 1,024 or 6,144 1,024 or 6,144
    Hardware Class Compatibility Apex, Gio, Ion Apex, Gio, Ion Apex, Gio, Ion, Element* Apex, Gio, Ion, Element*
    USB 3.1 Ports
