Mosaic Touchscreen Stations

  • Touchscreen Stations banner

    As beautiful as your light

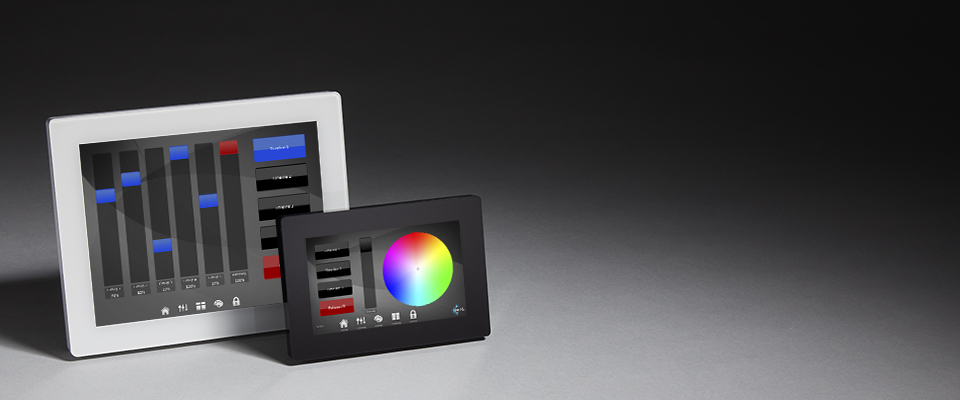

    Available in 5" and 8" models, with black or white bezels, Mosaic Touchscreen stations offer crisp control, vibrant readouts, and smooth transitions.


    Request a Demo

    As beautiful as your light

    Touchscreen Stations banner

    Available in 5" and 8" models, with black or white bezels, Mosaic Touchscreen stations offer crisp control, vibrant readouts, and smooth transitions.


    Request a Demo



    No matter which size you choose (5” or 8”), each Mosaic Touchscreen station offers multi-touch contact with the seamless glass screen, letting users slide faders and press buttons simultaneously. Touchscreens stations have the processing power to offer multiple custom pages of control, based on built-in themes or your own designs. High DPI, vivid color, and superior brightness mean greater screen fidelity, ensuring users can choose the exact right color show for their audience.

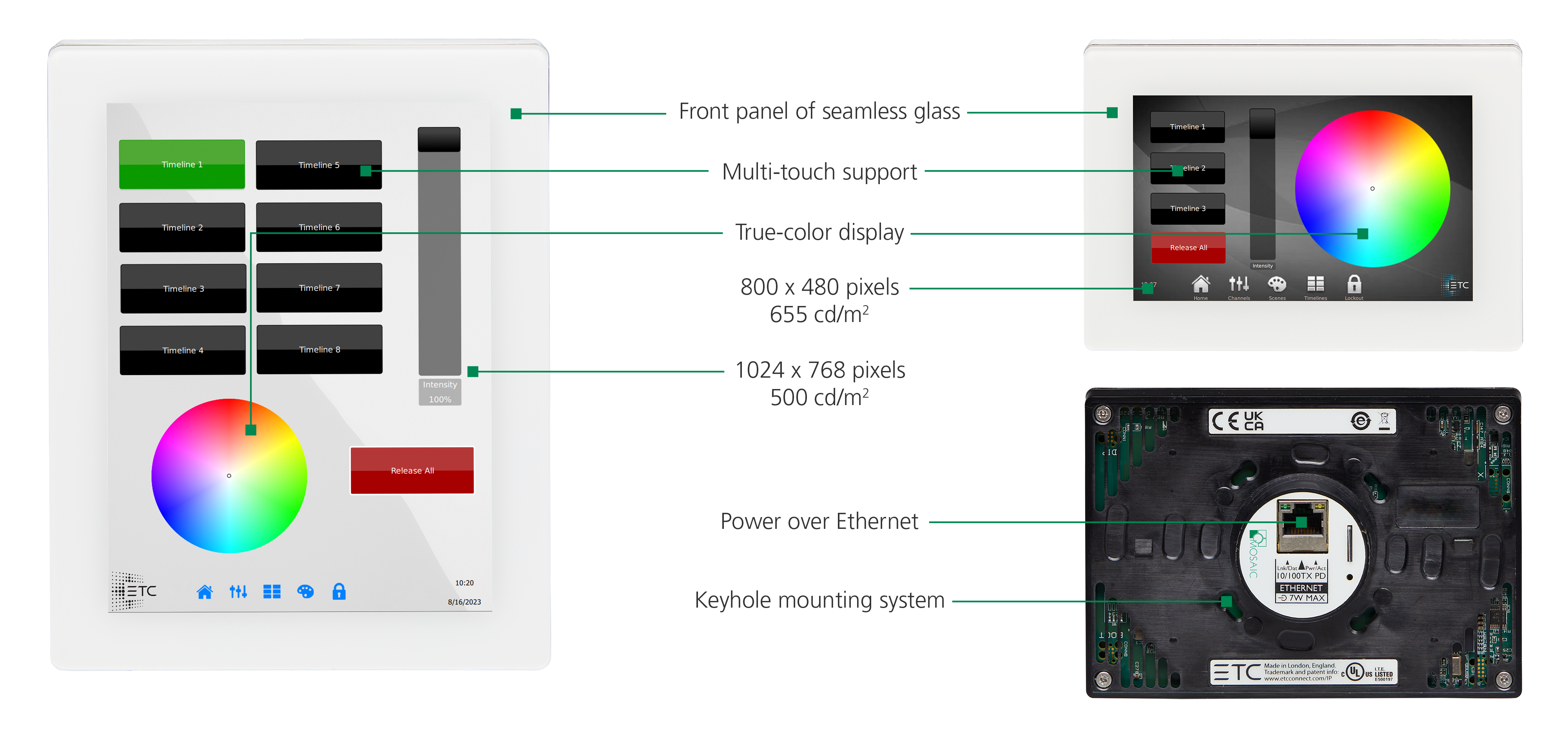

    Touchscreen leaderlines


    Mosaic Touchscreens feature clean design, plus a fit and finish that looks good in any decor. The 5” Touchscreen mounts on a standard 1-gang back box. The 8” Touchscreen uses a 2- or 3-gang back box. Both show no visible means of attachment for a sleek presentation. They are quick and easy to install and can be placed in a custom surface-mount backbox when required.

    Both the 5” and 8” Touchscreen can be added to any Mosaic project with Mosaic System Designer software. The M-TS5 and M-TS8 work with the full line of Mosaic controllers, including the MSC, MSCX, MTPC, and Atlas Controllers. They communicate with controllers via standard protocols over a wired Ethernet network using Power over Ethernet.

    Mosaic 8 inch
