Smart Systems

  • Anywhere dimming, anytime

    Available with either 4 or 6 dimmers, SmartModule 2® brings compact and affordable dimming solutions to any venue that requires maximum flexibility. Whether mounting SmartModule 2 on a wall, hanging on a pipe or setting up on the floor, museums, schools, rentals, small touring shows and convention centers can have professional-quality dimming with a small price tag.

  • No complicated setup

    No console required. Just plug in and go. SmartModule 2 performs reliably and is designed to last.

    SmartModule 2 offers local control capabilities and a choice of dimmer curves, as well as 20 pre-programmed chases for unattended operation. And it's convection cooled: SmartModule 2 operates without fans or filters.

    More power!  SmartModule 2 can handle twice the number of fixtures on a four-circuit Module with its high-power option.

    Pair with a SmartBar 2® for next-generation dimming that is reliable, portable and affordable.

    Product Features
    • Option for bi-phase (3-wire plus ground feed)
    • 4 or 6 dimmer models
    • Single-phase 20A 2-wire plus ground feed
    • Three-phase, 20A 4-wire plus ground feed
    • Choice of output connectors: Stage Pin, Edison, Twist-Lok
    • Load protection per dimmer -1200W circuit breakers (10A)
    • Stand-alone operation for local control and chase sequences
    • Programmable functions such as non-dim operation and dimmer curves
    • Convection cooled for silent operation

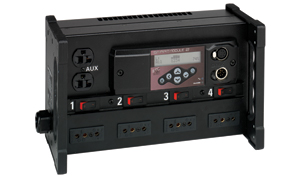

  • SmartModule2 4cir clip

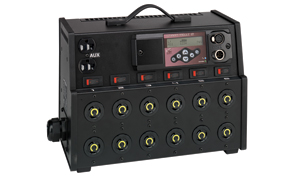

    SmartModule2 6cir clip
