The Revolution of brilliance

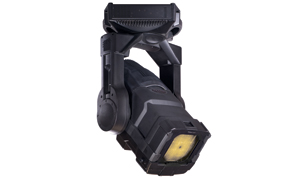

Imagine a high performance Source Four® Zoom™ ellipsoidal equipped with motorized pan, tilt, zoom and on-board dimming. Add a 24-frame capacity gel scroller that borrows from Wybron's famed Coloram® technology. Couple that with an exclusive QuietDrive™ motor control for amazing low-noise performance. All of the automated parameters required by the theatrical lighting designer are combined to create the Source Four Revolution®. Need additional beam control? Revolution's two module bays accept any two of the four optional beam-control modules. And these modules insert without tools or fixture disassembly. All modules are auto-sensing and require no patching or internal configuration changes to the fixture. True "plug-and-play" convenience!

  • Iris Module: 18-leaf construction
  • Static Wheel Module: Three positions plus open. Uses glass or steel M-size gobos or filters
  • Rotating Wheel Module: Three positions plus open. Variable speed rotation in both directions. High-resolution indexing. Uses glass or steel M-size gobos or filters
  • Shutter Module: Four shutters in four planes with 90º range of movement

Product Features

  • 750W, 77V QXL lamp has the proven characteristics of the 750W HPL with increased lumen output and patented quarter-turn insertion
  • Built-in Pulse Width Modulated dimmer
  • Auto-ranging 100V to 240V power supply and on-board dimming for global convenience
  • 24-frame integrated color scroller with convenient quick change gel-string cartridge
  • 540º Pan / 270º Tilt
  • 15º-35º Zoom
  • Automated crisp to soft focus
  • Internal Media Frame for diffusion or other user media choice
  • Two plug-and-play module bays for optional beam control modules
  • Rugged die-cast aluminum construction
  • Suitable for hanging in any orientation
