ETCnomad & ETCnomad Puck

  • ETCnomad Puck

    All the advantages of PC control. None of the risk.

  • Enjoy the concept of PC-based lighting control, but worry about the risk? Don't want your laptop to walk away from a venue? Concerned that someone on your crew would try to play video games or browse the Internet when they should be programming?

    Then you need ETCnomad Puck™.

    This ETC-provided and supported mini-computer is locked down, so no software other than ETC applications can be installed, giving you peace of mind that your device is safe, secure and used only for your shows. ETCnomad Puck 512 also makes a very cost-effective, highly portable Remote Video Interface.

    A small but powerful control device, Puck has one HDMI video port (DVI adapters can be used if needed), one Mini Display Port (Mini DP to HDMI adaptor included), one network port and four USB ports. This is a Windows 7 unit; as such, multi-touch displays are supported.

    A hat trick of control. ETCnomad Puck can serve as a primary, backup or client device, and it can also work offline.

    ETCnomad Puck is available in two output counts:
    • ETCnomad Puck 512 (and a rocking RVI)
    • ETC nomad Puck 6144
    • Supported protocols include Net3/ACN/sACN and ArtNet
      • Note that Net2 protocol is not supported.
    • DMX/RDM Gateways (Net3)
    • Show Control Gateway
    • I/O Gateway
    • Eos Programming Wing
    • Eos Motorized Fader Wing 10 or 20
    • Eos Fader Wing 20 or 40
    • ETC Gadget II USB-to-DMX/RDM converter (up to four may be connected for a total of four local outputs)
    • iRFR, iRFR Preview and aRFR
    • ETCpad (ETC Portable Access Device)
    • Third-party USB-MIDI panels via Direct MIDI

    When you use ETCnomad Puck as a primary or backup, the system output is determined by the device with the lowest output configuration. When it's connected as a client, ETCnomad Puck's output capacity is ignored.

    To find out what features are supported and to see user-interface descriptions, check out the Eos-family documentation here.

    Note: ETCnomad Puck is also compatible with Cobalt


    Do you want the convenience of ETCnomad Puck in a device you can fit on your keychain? Then ETCnomad is for you. The tiny ETCnomad key plugs into your computer, turning it into a lighting controller that runs Eos/Element software.

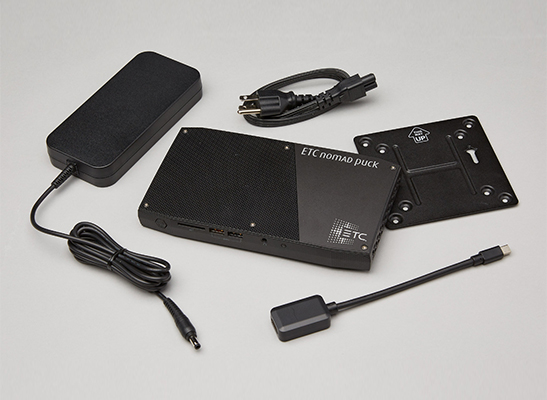

  • ETCnomad Puck accessories

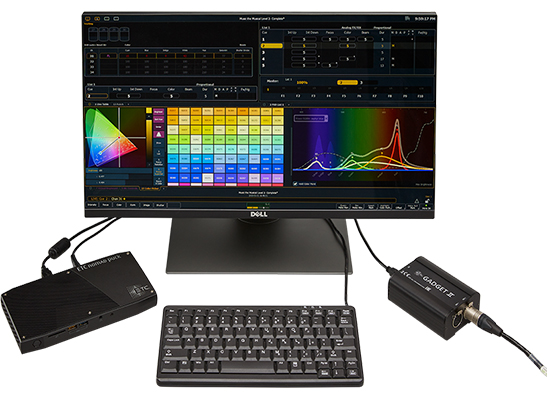

    ETCnomad Eos sytem

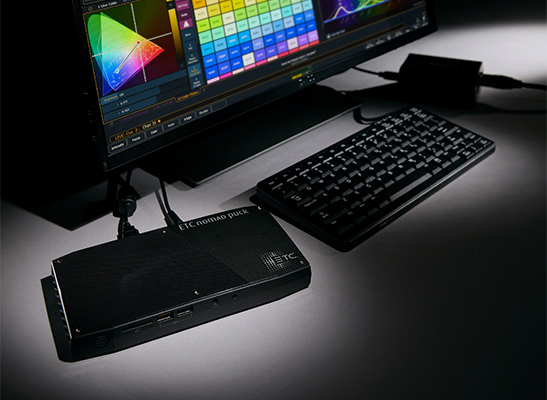

    ETCnomad Puck macro
