Hoglet 4

Sign up for updates

Our most compact Hog yet! The Hoglet 4 is a compact wing, designed for tight spaces and smaller productions such as clubs, churches and small concert venues. Combine the Hoglet 4 with Hog 4 PC and you are ready to rock!

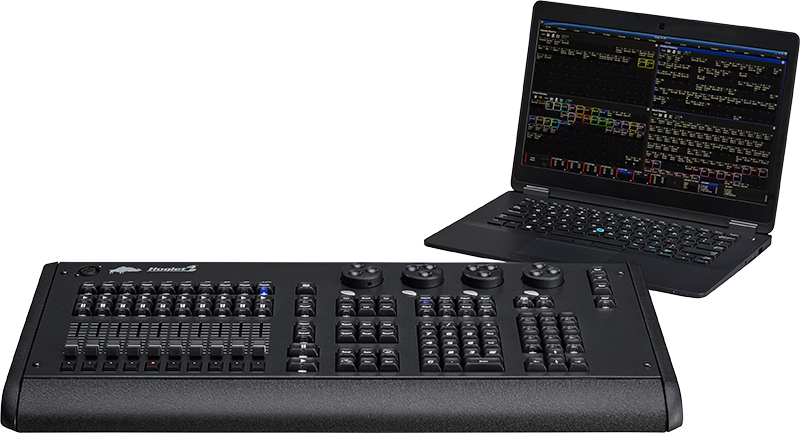

Even a seasoned Hog programmer will feel right at home on the Hoglet 4, as it has a programming surface similar to its larger brothers. Combine Hoglet 4, Hog 4 PC and a touchscreen and you have a proper, full-fledged lighting console with four DMX ports and four encoders built in. Hoglet 4 is also a great companion to the HPU, as it makes operating a show in a confined space or programming fixed installations a breeze.

The Ins and Outs

Hog 4-18 back

Leave the processing to Hog 4 PC (or an HPU) — just connect Hoglet 4 with USB and use it not only as a programming surface but also to send DMX (like a Super Widget). The built-in USB hub make connecting more devices easy.

Product Features
  • USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
  • 10 manual playback faders
  • Four expanded-wheelset encoders
  • 12 user-assignable function keys
  • Kensington security slot
  • One dimmable white desk light included
  • Dust cover included
  • Custom road case available
  • Compliance: ETL, CETL, CE
  • Built-in DMX Super Widget
  • Local DMX-512 outputs: 4x Neutrik 5-pin XLR
  • USB 2.0 ports: 2 rear

  • External PSU input: 100-250VAC, 50/60Hz, max 25W
  • External PSU output: 12VDC 2.5A/25W

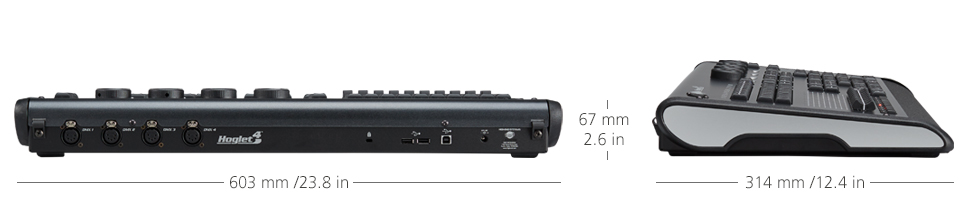

Weights and Dimensions
  • Width: 603mm / 23.8"
  • Depth: 314mm / 12.4"
  • Height: 67mm / 2.6"
  • Weight: 3.9kg / 8.7lb
Hog 4-18 dimensions
