Pro One-Cell

S P E C I F I C A T I O N S

FEATURES

Wired DMX control
Stepless, smooth dimming to absolute zero
Convection cooled
Fan-free, silent operation
Available in a dual-input emergency version (via D1 Driver)

OPTICAL

High-grade, narrowly binned Bridgelux emitters
CRI (color rendering index) = 90+
2700 K/3000 K color-temperature options
Fixed luminaire: 18°, 30° and 50° beam-angle options
Excellent thermal management ensures the LEDs will meet anticipated 50,000-hour life cycle
Recessed aluminum reflectors for minimal glare

ELECTRICAL

Requires separate D1 Driver
Less than 1W quiescent load
ArcSystem fixture connects to D1 driver via four-pin Molex connector

MECHANICAL

High-grade aluminum and steel construction
Fine-texture, high-temperature, powder-coated paint finish

PHYSICAL

Product Dimensions*

Product Weight

MODEL	HEIGHT		WIDTH		DEPTH
	inches	mm	inches	mm	inches	mm
1 Cell Recessed	6.23	159	7.75	197
1 Cell Fixture Adj Recess	6.49	165	7.77	145
1 Cell Fixture with Adj Yoke	6.14	156	4.92	125

MODEL	WEIGHT		SHIPPING WEIGHT
	lbs	kgs	lbs	kgs
1 Cell Fixed	2.42	1.1
1 Cell Fixture Adj Recess	3.08	1.4
1 Cell Adj Yoke

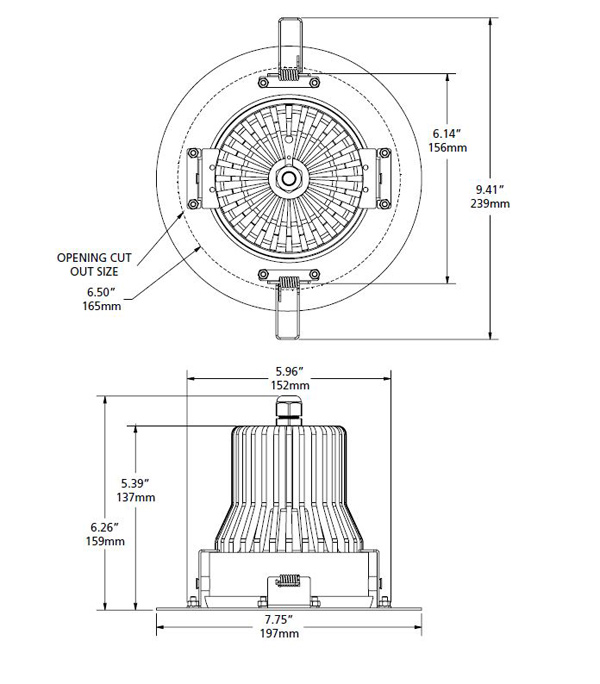

Pro One-Cell fixed dimensions

Pro One-Cell adjustable recessed dimensions

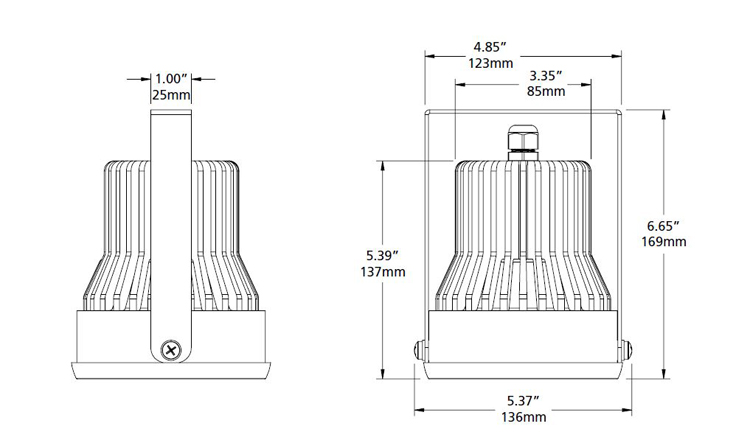

Pro One-Cell adjustable yoke dimensions

Lumen Table
Color Temperature	Beam Angle	Field Angle	Field Lumens	Max Candela
2700K	18	49.6	808	6,553
2700K	30	69.7	1,028	4,107
2700K	50	82.4	1,381	2,012
3000K	18	52.4	955	7,436
3000K	30	70.9	1,209	4,613
3000K	50	82.7	1,543	2,194

EMERGENCY CONNECTION

A dual-input emergency version of this luminaire is available. Emergency drivers have two line-voltage leads that are wired to the product and have the following functions:

Normal power/emergency power
Normal power sense input

Emergency Connection

If normal power to the sense input is lost, the driver will force the luminaire on at 100%, overriding all other control signals. There is no control of the driver/luminaire via wired DMX until normal power is restored at the sense input.
