2-Port Gateways

Legacy Product – replaced by Response Mk2 DMX Gateways

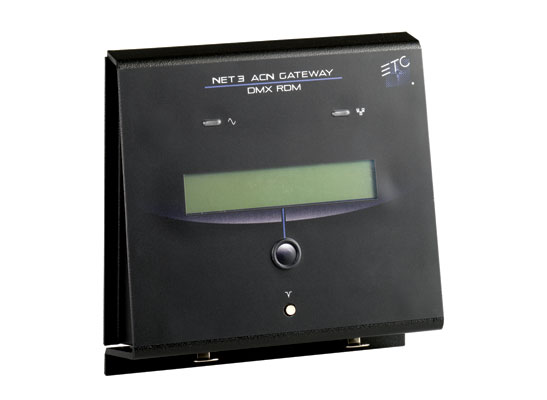

2-Port Gateways
Delivers two ports of powerful portable data distribution

ETC's DMX/RDM 2-Port Gateways provide data distribution using the quality and reliability of ETC's network infrastructure. Built on the industry-standard protocol streaming ACN (sACN), the 2-Port Gateway unlocks the power of your networked system, sending or receiving DMX512 and Remote Device Management (RDM) signals.

The 2-Port Gateway supports two DMX/RDM input or DMX/RDM output connectors, to transport up to 1024 addresses of DMX over Ethernet. It also features an integrated display. The 2-Port DMX Gateway is available for use as a wall-mount, or pipe-mount device.

Product Features

  • Uses ACN and streaming ACN protocols
  • 2 DMX ports
  • Distributes up to 1024 addresses
  • Configurable for DMX input or output
  • Supports Remote Device Management (RDM)
  • Supports Power over Ethernet (PoE 802.3af) or external power supply
