Architectural Control Processor Mk2


  • Control Processor Mk2



    The Architectural Control Processor Mk2 (ACP Mk2) is the brain of every Paradigm system. Each Processor works with vast amounts of lighting control data to process thousands of commands simultaneously, plus sync sensors, stations, relays, dimmers, drivers, and more to create the ultimate networked lighting control system.

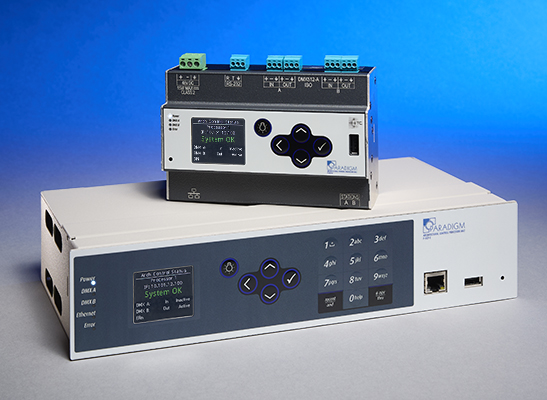

    The ACP Mk2 is available in two models: the enclosure version (P-ACP-E), designed to fit in ETC’s ERn and DRd cabinets; and the compact DIN rail mounted version (P-ACP-D) for easy deployment across a site. Both models are fanless, so they can be used in locations where silence is preferred.

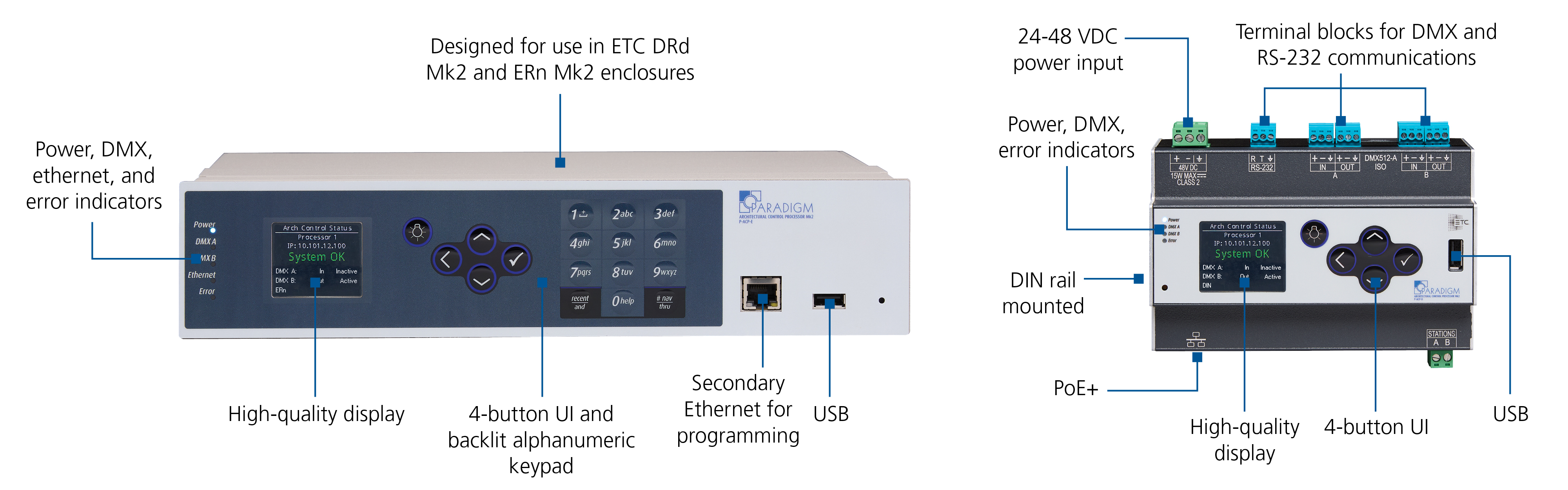

    Control Processor Mk2 Leaderlines EN


    The Paradigm Architectural Control Processor Mk2 is designed for easy interaction and programming via ETC’s LightDesigner software.

    Both models feature:

    • Control functionality for control channels, zones, fixtures, groups, presets, macros, walls, and sequences
    • 2,048 channels of control over DMX and sACN
    • Connects with up to 128 stations when using required station power supplies
    • Ability to schedule timed events (add/delete)
    • Network Time Protocol for real-time clock synchronization supporting real and astronomical events
    • Internal web server accessible via Ethernet port for programming, scheduling, status, diagnostics, log access, and setting configuration
    • cULus Listed
    • CE/UKCA Compliant
