EchoTouch offers compact, stylish, and intuitive touchscreen control of lighting in architectural and smaller entertainment spaces. Combining three powerful capabilities into one elegant device, EchoTouch can:
- Act as an interface into a standalone or integrated Unison Echo control system
- Provide status and control of all Echo products
- Schedule real time and astronomical events
- Direct control for DMX/RDM and sACN fixtures and devices
EchoTouch shines in all environments, whether in a commercial building with users who need to choose between preset looks, or in an event space to create and recall predetermined looks.
Get the Datasheet

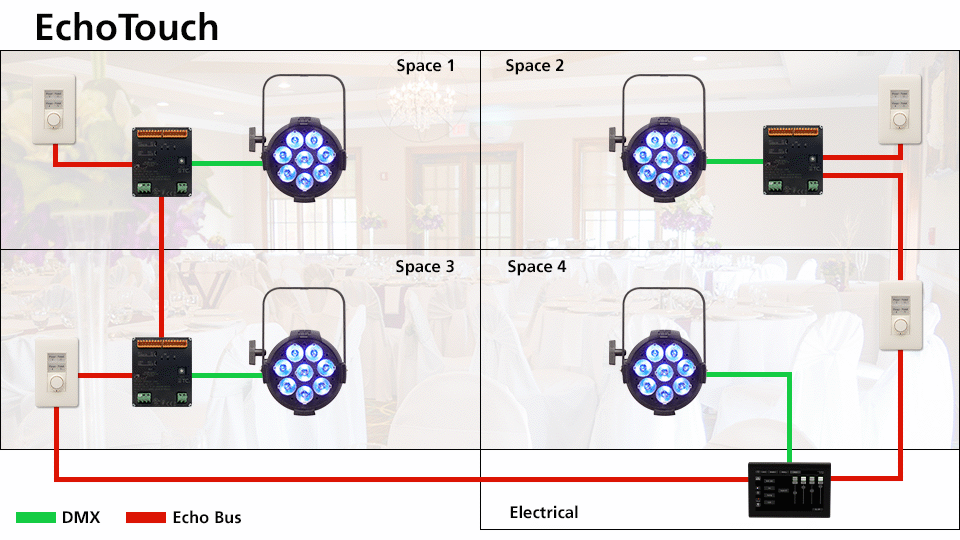

Because EchoTouch is part of the Echo family it works flawlessly in an Echo control system. All Echo control and power products are compatible:
interfaces – even
Room Controllers and
Echo Relay Panels. When the Echo control system doesn’t meet the need, integration with DMX and sACN power control and fixture products is also straightforward.
Users can locally program channels, presets, sequences, and events to control their devices, even ones in multiple spaces. Programming is simplified with native RDM for discovery of connected fixtures and customizable palettes. Color control is intuitive
and accessible with a color picker and customizable color palettes to let users take full advantage of their system.
Want to learn more about EchoTouch?
Complete this form and a member of our team will be in touch!
REQUEST A DEMO
With TimeClock support, EchoTouch adds powerful triggering and state-based logic to programmed looks. Not only can EchoTouch support 80 real-time events (when a business is open or closed) or astronomical events (day and night looks) across all
spaces, but it will choose looks based on these states automatically. Open at night? Closed during daylight hours? EchoTouch will make sure your lighting behaves exactly as planned. And if the unexpected should happen and you lose power, EchoTouch
will return your lighting to exactly where it should be upon restoration of power.
With the offline editor, EchoTouch users can edit their presets, customize control screens, and write specialized looks without needing to be in front of the physical touchscreen. Users can edit their looks, create preset files on their computer, and
transfer them to any EchoTouch touchscreen via a USB drive.
To use the EchoTouch offline editor, PC users must be running Windows 7 SP1, Windows 8.1, or Windows 10, have a screen resolution of at least 1920x850, and DirectX9/OpenGL 3.0 or better.
EchoTouch mounts in a standard 3-gang back box and is powered by PoE or 24VDC, making installation a breeze. Intuitive and easy-to-use faders and buttons display on Echotouch’s crisp and vibrant 7-inch screen. The graphics on the screen support customized
layout and naming for any application. The touchscreen interface provides three standby modes to conserve screen life: displaying a user-provided logo, dim, and off; and returns instantaneously to normal functionality with any user interaction.
The stylish, sleek, and durable design is built to hold up to daily use and high-traffic areas. Its modern style matches common architectural finishes, and it’s designed to be neutral to fit anywhere. The black glass front is offered in four bezel colors:
Cream, Gray, White, and Black.
- Locally program and control channels, presets, and sequences
- 80 channels of EchoConnect, DMX, or sACN control
- Integrated UDP Support
- Fully integrated TimeClock
- Full palette system
- Directly control lights on any system that supports DMX or sACN
- 3-gang back box for easy install
- 7-inch touchscreen interface
- Intuitive and accessible color control
- RDM discovery of devices
- Locking cover available
- Black glass front with four bezel colors: Cream, Gray, White, and Black
- Streaming ACN snapshot
- Multi-space output enables control of up to 16 spaces from a single device
