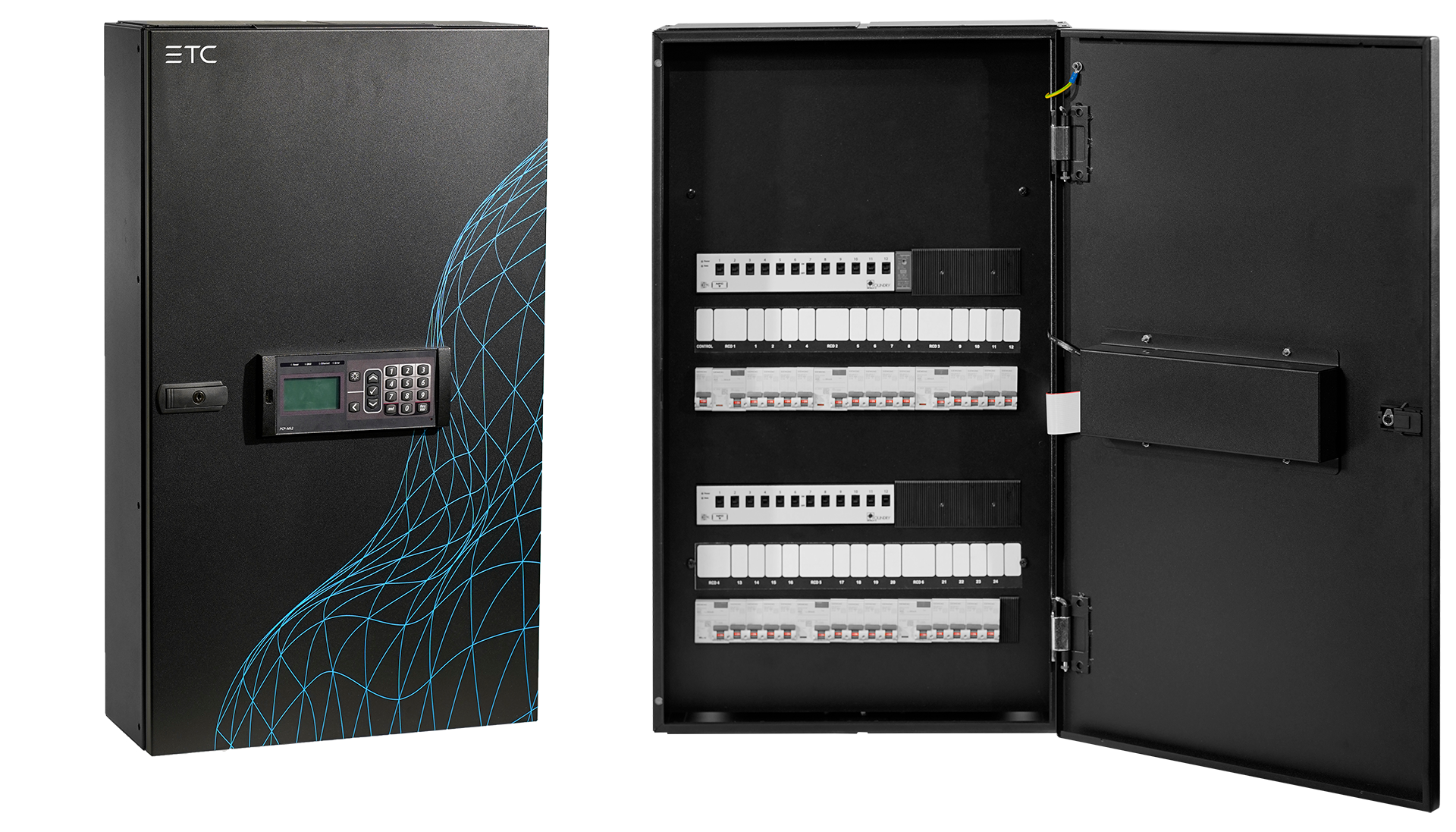

Foundry Switch Panel



  • Foundry Switch Panel

    Designed specifically for the 230 V market, the Foundry Switch Panel is a high-performance power control solution available with 12-, 24-, or
    48-channels of switched power. It intelligently reduces in-rush through phased switch-ons to help manage today’s modern electrical loads. With optional current monitoring and reporting, the Foundry Switch Panel provides tools for venues to intelligently manage their energy usage.

    Center of System

    The Foundry Switch Panel is designed to be the center of your entertainment lighting system. It’s fanless construction means it can be used in sensitive environments where you need silent operation. The switched outputs can be individually controlled by sACN or DMX as they supply power to your system.

    It seamlessly integrates into the ETC ecosystem, pairing nicely with ETC Eos consoles and ETC’s architectural controls. It ensures your whole install works in harmony, regardless of the size of your venue.

    FSP - DMX FSP - Connect FSP - Report
    12-Circuits Yes
    24-Circuits Yes Yes Yes
    48-Circuits (using client rack) Yes Yes
    Convection cooled (fan free) Yes Yes Yes
    DMX Input Yes Yes Yes
    sACN Input Yes Yes
    "Panic" contact input Yes Yes Yes
    Circuit Protection RCD per 4, or
    RCBO per circuit
    RCD per 4, or
    RCBO per circuit
    RCD per 4, or
    RCBO per circuit
    Current rating 10A 10A 10A
    Inrush reduction Automatic switch-on delays Automatic & manual
    switch-on delays
    Automatic & manual
    switch-on delays,
    Zero-cross switching
    NFC Configuration via Set Light Yes
    RDM Configuration Yes Yes Yes
    Onboard UI Yes Yes
    Web-UI Yes Yes
    Current Monitoring and Reporting Yes
    Five-year warranty Yes Yes Yes


    Ease of Configuration

    Foundry Switch Panel

    Built with exacting standards in ETC’s European factory, the Foundry Switch Panel was designed and built in Europe to meet the needs of the market.

    Its scalable nature allows you to specify precisely what you need, lowering costs and simplifying the installation process. The Foundry Switch Panel follows EU design protocols, wiring standards, and methodology so electricians can get it working quickly. You can rest assured knowing everything is built to work together and assembled correctly – resulting in less work for your onsite team.

    Configuration is a breeze. The DMX model can be set up using the ETC Set Light App. The Connect and Report models can be configured via the web interface, RDM, or the on-board user interface.

    Plus, Foundry Switch Panel is backed by ETC’s legendary 24/7/365 support and 5-year warranty.



    Safety from the Start

    Unrelenting attention to safety is part of the package. Each channel is protected from current disruptions via a RCD making it easier to comply with local installation requirements. For more information on all the things to consider when upgrading your system to LED loads, watch our video, “The Balance of Power”.
