Eos Apex


  • I/O Garage


    Eos Apex Garage


    With Eos Apex lighting control consoles, you can customize the inputs and outputs on a per-show basis. When you need a little more DMX on one production and a little more MIDI on the next, simply swap out the backpack gateways in your I/O Garage.

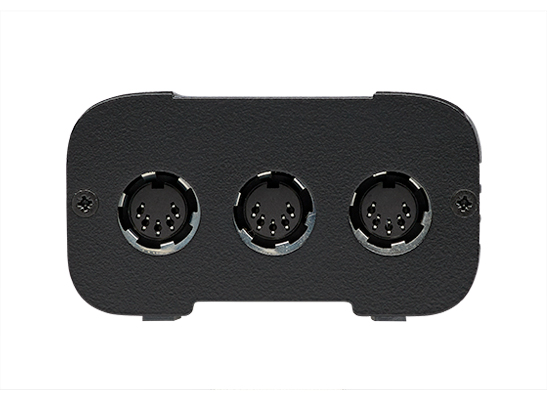

    Response MIDI Gateway

    Response MIDI Gateway

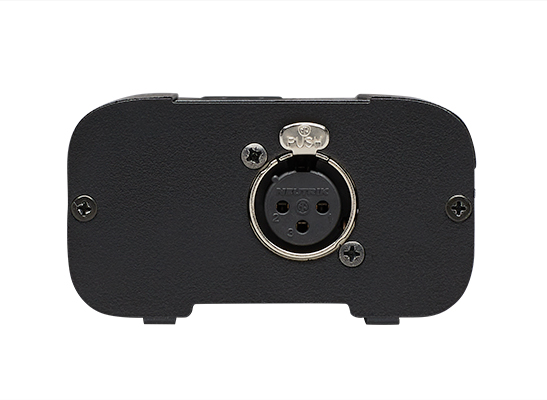

    Response SMPTE Gateway

    Response SMPTE Gateway

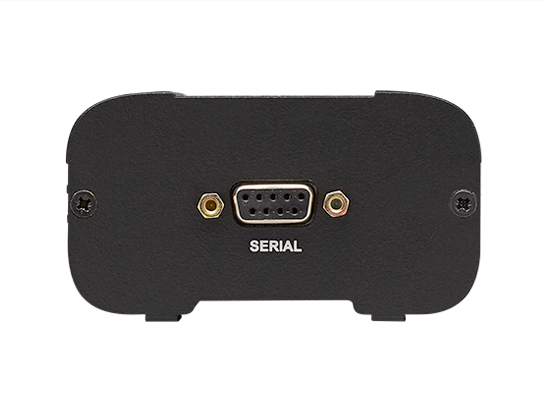

    Response Serial Gateway

    Response Serial Gateway

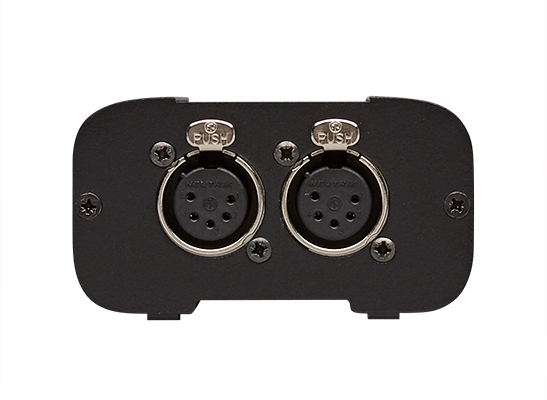

    Gadget II DMX Gateway

    Gadget II DMX Gateway

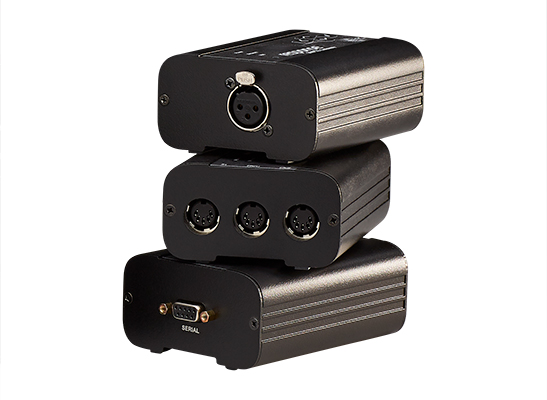

    Response Show Control Gateways


    Response Show Control Family


    Integrate or automate your show with these portable MIDI, SMPTE and Serial devices.

    Learn More

    Gadget II

    Gadget 2 left

    Portable 2-port DMX output for Eos Apex consoles or PC- and Mac-based ETCnomad control.

    Learn More



    Explore Eos networking accessories →

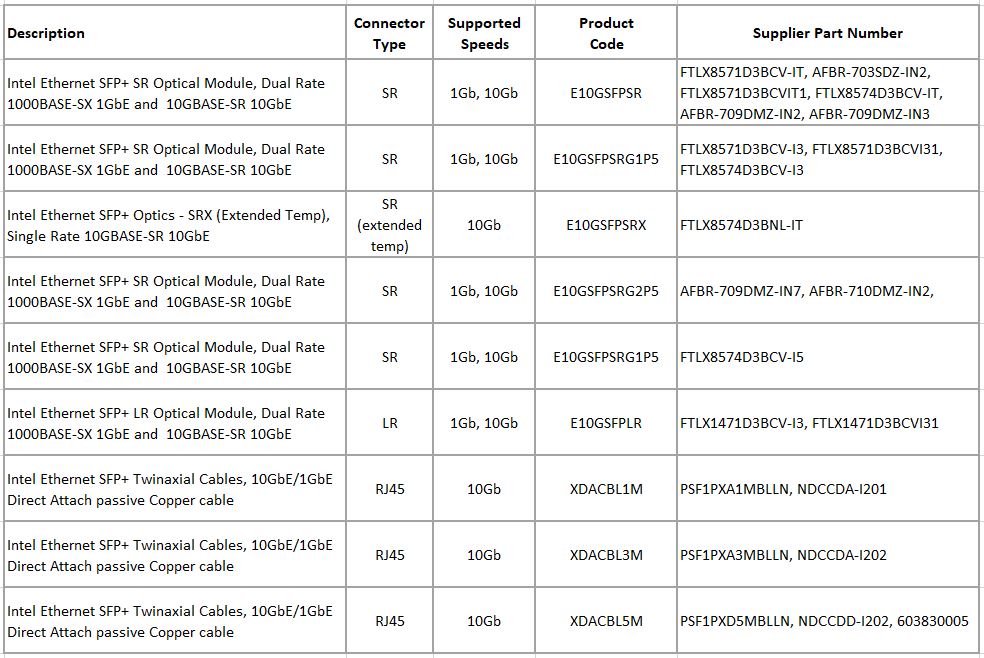

  • SFP+ Port Sleds

    Description Connector Type Supported Speeds Product Code Supplier Part Number
    Intel Ethernet SFP+ SR Optical Module,
    Dual Rate 1000BASE-SX 1GbE and
    10GBASE-SR 10GbE    		 SR 1Gb, 10Gb E10GSFPSR FTLX8571D3BCV-IT, AFBR-703SDZ-IN2, FTLX8571D3BCVIT1, FTLX8574D3BCV-IT, AFBR-709DMZ-IN2, AFBR-709DMZ-IN3
    Intel Ethernet SFP+ SR Optical Module,
    Dual Rate 1000BASE-SX 1GbE and
    10GBASE-SR 10GbE    		 SR 1Gb, 10Gb E10GSFPSRG1P5 FTLX8571D3BCV-13, FTLX8571D3BCVI31,
    FTLX8574D3BCV-I3
    Intel Ethernet SFP+ Optics - SRX (Extended Temp), Single Rate 10GBASE-SR 10GbE SR
    (extended temp)    		 10Gb E10GSFPSRX FTLX8574D3BNL-IT
    Intel Ethernet SFP+ SR Optical Module,
    Dual Rate 1000BASE-SX 1GbE and
    10GBASE-SR 10GbE    		 SR 1Gb, 10Gb E10GSFPSRG2P5 AFBR-709DMZ-IN7,
    AFBR-710DMZ-IN2
    Intel Ethernet SFP+ SR Optical Module,
    Dual Rate 1000BASE-SX 1GbE and
    10GBASE-SR 10GbE    		 SR 1Gb, 10Gb E10GSFPSRG1P5 FTLX8574D3BCV-I5
    Intel Ethernet SFP+ LR Optical Module,
    Dual Rate 1000BASE-SX 1GbE and
    10GBASE-SR 10GbE    		 LR 1Gb, 10Gb E10GSFPLR FTLX1471D3BCV-I3, FTLX1471D3BCVI31
    Intel Ethernet SFP+ Twinaxial Cables, 10GbE/1GbE Direct Attach passive Copper cable RJ45 10Gb XDACBL1M PSF1PXA1MBLLN, NDCCDA-I201
    Intel Ethernet SFP+ Twinaxial Cables, 10GbE/1GbE Direct Attach passive Copper cable RJ45 10Gb XDACBL3M PSF1PXA3MBLLN, NDCCDA-I202
    Intel Ethernet SFP+ Twinaxial Cables, 10GbE/1GbE Direct Attach passive Copper cable RJ45 10Gb XDACBL5M PSF1PXD5MBLLN, NDCCDD-I202, 603830005
