Ion Xe RPU

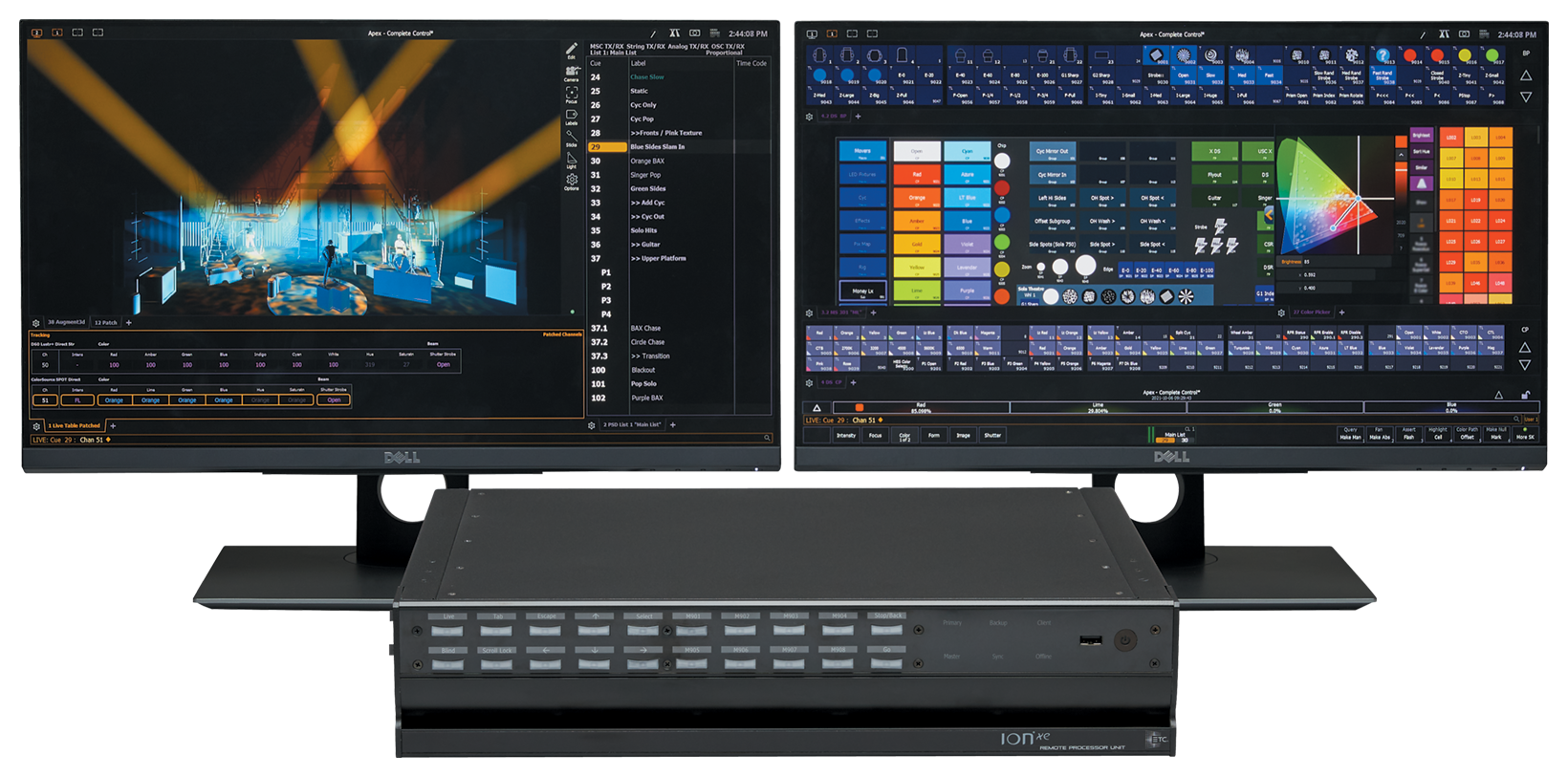

The Ion Xe Remote Processor Unit (RPU) is a 2U 19-inch rack-mount controller that can serve as a backup for your Ion Xe or Ion Xe 20 lighting control system, or it can function as a stand-alone lighting playback controller. The front panel of the Ion Xe RPU features twenty user-programmable buttons and LED indicators that show mode and status.

Setup Guide

Prepare your Eos Family device for use by following these setup steps:

1. Insert the included power cord, locking it into the IEC socket under the hard power switch on the back of the device. Connect the other end of the cord to wall power.



   CAUTION: Power cord must be connected using an earth ground connection.

2. Connect any external monitors to the appropriate device ports, as well as their own power sources.



3. Connect any USB devices, such as an external mouse or the included keyboard.
4. Connect any network cabling to the appropriate Ethernet port.



5. Activate the hard power switch above the IEC socket.



6. Activate the soft power button on the front of the device.



7. Choose one of the Supported Eos Device Roles to log into the Eos application.



Once your Eos Family device is up and running, Get Started with information about Eos System Requirements and Setup, Eos Family Resources, and Using This Manual.

Physical Overview

Power

Power Button

The soft power button on the front of your device is used to power it up or down. You can also power down your device via {Power Off Device} in the Browser.

Hard Power Switch

A separate hard power switch, located on the rear panel above or below the power cord socket, supplies or disconnects power from the console’s internal components.

External Monitors

For monitor configuration, see {Monitor Arrangement...}.

Ethernet ports are for connecting to a network switch, network gateways, and accessory devices. Each port can be run as a separate NIC, and can be configured to directly output network-based lighting control protocols such as sACN or Art-Net.

See Patch > Protocols and Setup > Device > Network.

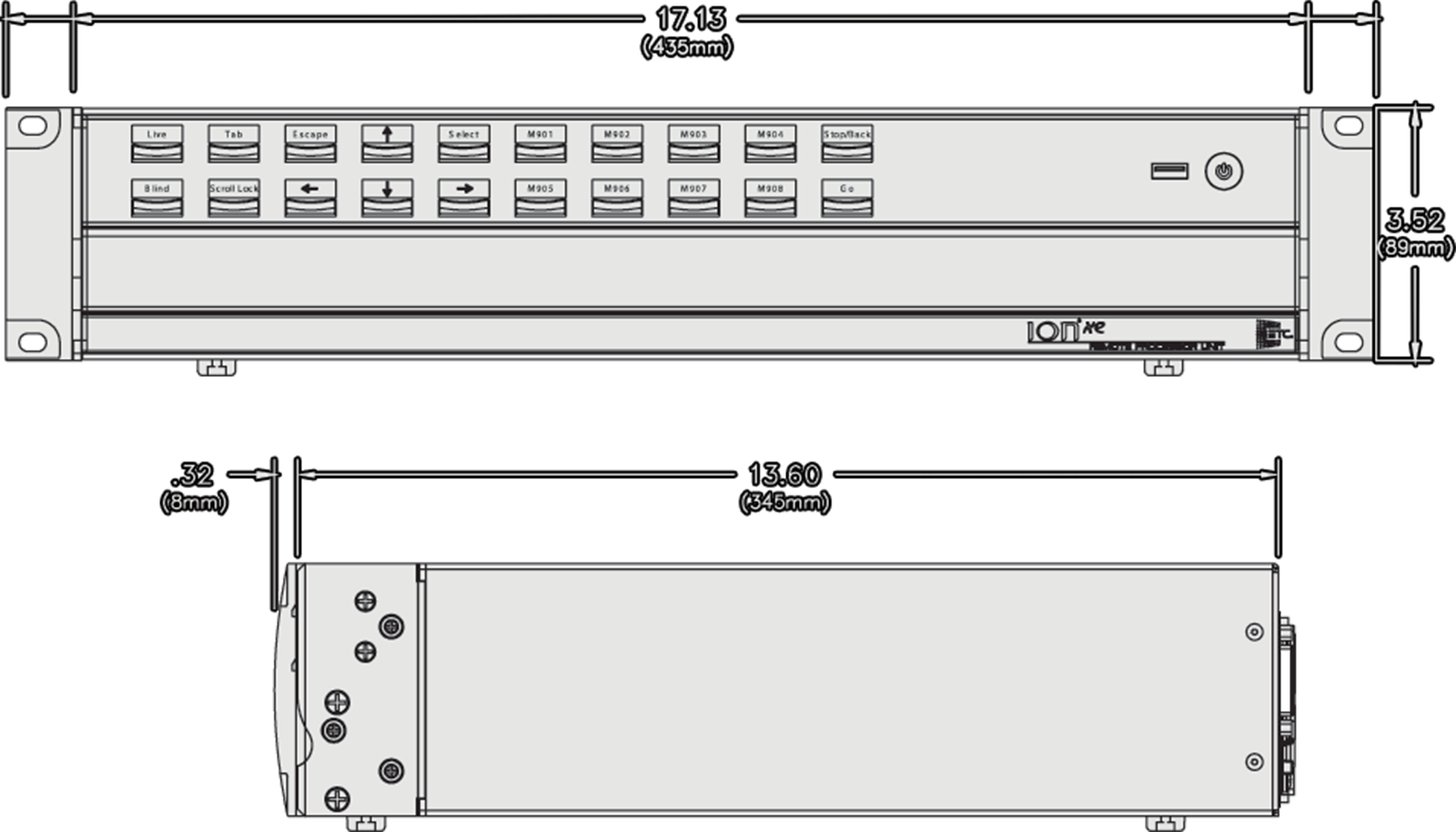

Dimensions and Weights

Model	Height		Width		Depth		Weight
	mm	in	mm	in	mm	in	kg	lb
Ion Xe RPU	447	17.6	864	34.0	648	25.5	44	97
Ion Xe RPU in shipping container	318	12.5	966	48.0	794	31.3	TBD	TBD

Ships With

• One three-button scroll mouse and mousepad.
• Alpha-numeric keyboard.
• Locking regionalized IEC power cord.
• Two active Display Port to DVI adapters.
• Two 19-inch rackmount ears and mounting hardware.
• Four rubberized feed (for desktop use).
• Augment3d AR target kit.

Features, Specifications, and Requirements

Minimum Eos Software Version

The Ion Xe RPU requires Eos software v3.1.1 or later.

Supported Eos Device Roles

Eos Family device roles determine the device's behavior and abilities, primarily in Multi-Console Sessions. Roles can be chosen from the ECU Welcome Screen, which can be accessed on device startup or by exiting the Eos application to the shell via Browser > Exit.

The Ion Xe RPU can be used in the following Eos Device Roles:

• Host - previously "Master," the Host is whichever of these devices is currently leading the session:
  • Primary- the device designated as operating the session.
  • Backup - the device logged in to track the Primary and take over in event of failure.
• Client - any device logged in as a full-time participant of the session, with no ability to become a Host.
• Expansion Processor (EEP) - a device logged into Expansion Processing mode for processing and outputting additional universes of data.
  • Backup Eos Expansion Processor (BEEP) - a device logged into Expansion Processing mode, assigned to track an EEP and take over in the event of failure.
• Offline - any device that has been logged into Offline mode, which may be on a network, but is not connected to a session and is not outputting.

Available Outputs

The Ion Xe RPU is available with 24,576 outputs.

Capacities

• Output Parameters - 24,576.
• Channels - 32,768 (can be any number from 1 to 99,999).
• Cues - 10,000.
• Cue Lists - 999.
• Record Targets
  • Groups - 10,000.
  • Palettes - 10,000 x 4 (Intensity, Focus, Color, Beam).
  • Presets - 10,000.
  • Effects - 10,000.
  • Macros - 99,999.
  • Snapshots - 10,000.
  • Curves - 10,000.
  • Color Paths - 10,000
• Faders
  • Virtual Faders - 100 virtual pages of 10 faders each.
  • Playbacks - 200 configurable cue playbacks, with Go and Stop/Back.
  • Submasters - 999 configurable submasters, with Bump and Assert/ channel select.

Electrical and Thermal

• Power Consumption - approximately 2 A at 120 V or 230/240 V
• Ambient Room Temperature - 0°–35°C (32°–95°F)
• Ambient Humidity - up to 90% non-condensing

Regulatory and Compliance

• CE compliant
• cETLus listed
• UKCA marked
• FCC compliant
• RoHS compliant
• WEEE
