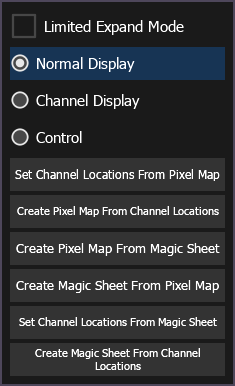

Augment3d Tab Configuration

• Limited Expand Mode - allows Augment3d to be displayed fullscreen. While in this mode, the monitor with Augment3d will not display a tab number, command line, or status bar, and other tabs open on the monitor will be closed or moved to a different display.
  •  A limited selection of Augment3d Toolbar tools are available.
  • Press [Shift] & [Displays] to enter or exit limited expand mode, or use the option in the gear icon menu.

These display options are also available in Setup > User > Displays > {Augment3d Display Behavior}.

• Normal Display - the display will behave the same as other display tabs.
• A locked tab will not be skipped.
• A single click or tap on the tab will draw focus to that tab.
• Channel Display - this mode uses the following rules:
  • When focus is drawn to the playback status display, an Augment3d channel display will be brought to the front.
  • [Shift] & [Live] will cycle through Augment3d channel displays alongside Live channel displays.
  • Pressing [Live] or bringing a Live tab into focus will restore your last focused Augment3d channel display.
  • Augment3d channel displays in the locked frame will not be skipped when using the [Tab] key to cycle through tabs.
• Control - the display will behave the same way Control Tabs do.
• Locked tabs will be skipped.
• A single click or tap will not draw focus.
• A double click or tap will draw focus to the tab.

• {Set Channel Locations From Pixel Map} - allows you to pull fixture locations from an existing pixel map in your show file. Specify the pixel map number and any X/Y/Z constraints. Select {Confirm} to place fixtures in your show at the same locations they exist in the pixel map.
• {Create Pixel Map From Channel Locations} - allows you to use your existing Augment3d fixture locations to create a pixel map. Specify the camera direction that the fixture locations will be pulled from and a pixel map number. Select {Confirm} to create a pixel map with fixtures at the same locations they exist in the Augment3d model.
  • This option is governed by fixture selection. If no fixtures are selected, all fixtures in the Augment3d model will be added to the pixel map.
• {Create Pixel Map From Magic Sheet} - allows you to create a Pixel Map from an existing magic sheet. Specify the pixel map to create and the magic sheet to pull from. Select {Confirm} to create a pixel map with fixtures at the same locations they exist in the magic sheet.

• {Create Magic Sheet From Pixel Map} - allows you to create a magic sheet from an existing pixel map. Specify the magic sheet to create and the pixel map to pull from. Select {Confirm} to create a magic sheet with fixtures at the same locations they exist in the pixel map.
• {Set Channel Locations From Magic Sheet} - allows you to pull fixture locations from an existing magic sheet in your show file. Specify the magic sheet number and any X/Y/Z constraints. Select {Confirm} to place fixtures in your show at the same locations they exist in the magic sheet.
• {Create Magic Sheet From Channel Locations} - allows you to use your existing Augment3d fixture locations to create a magic sheet. Specify the camera direction that the fixture locations will be pulled from and a magic sheet number to create. Select {Confirm} to create a magic sheet with fixtures at the same locations they exist in the Augment3d model.
  • This option is governed by fixture selection. If no fixtures are selected, all fixtures in the Augment3d model will be added to the magic sheet.
  • Scale is measured as a ratio of pixels to 1 meter, and defaults to 80, which would create a magic sheet measuring 80 pixels for each meter in the Augment3d model. Enter a scale between 1 and 200.
