Tabs

Any frame can have multiple tabs open. You can open or close tabs using the icons in the Workspace Layout Menu, or typing the [Tab] & the tab number.

Pressing [Shift] & [Tab] once will clear all tabs on the selected monitor but tabs in locked frames will remain. Pressing [Shift] and tapping [Tab] twice will clear all tabs on all monitors but tabs in locked frames will remain. Tapping [Tab] a third time will clear all tabs on all monitors including those in locked frames.

Tabs can be reordered by dragging the tab to a new location.

Display Tabs

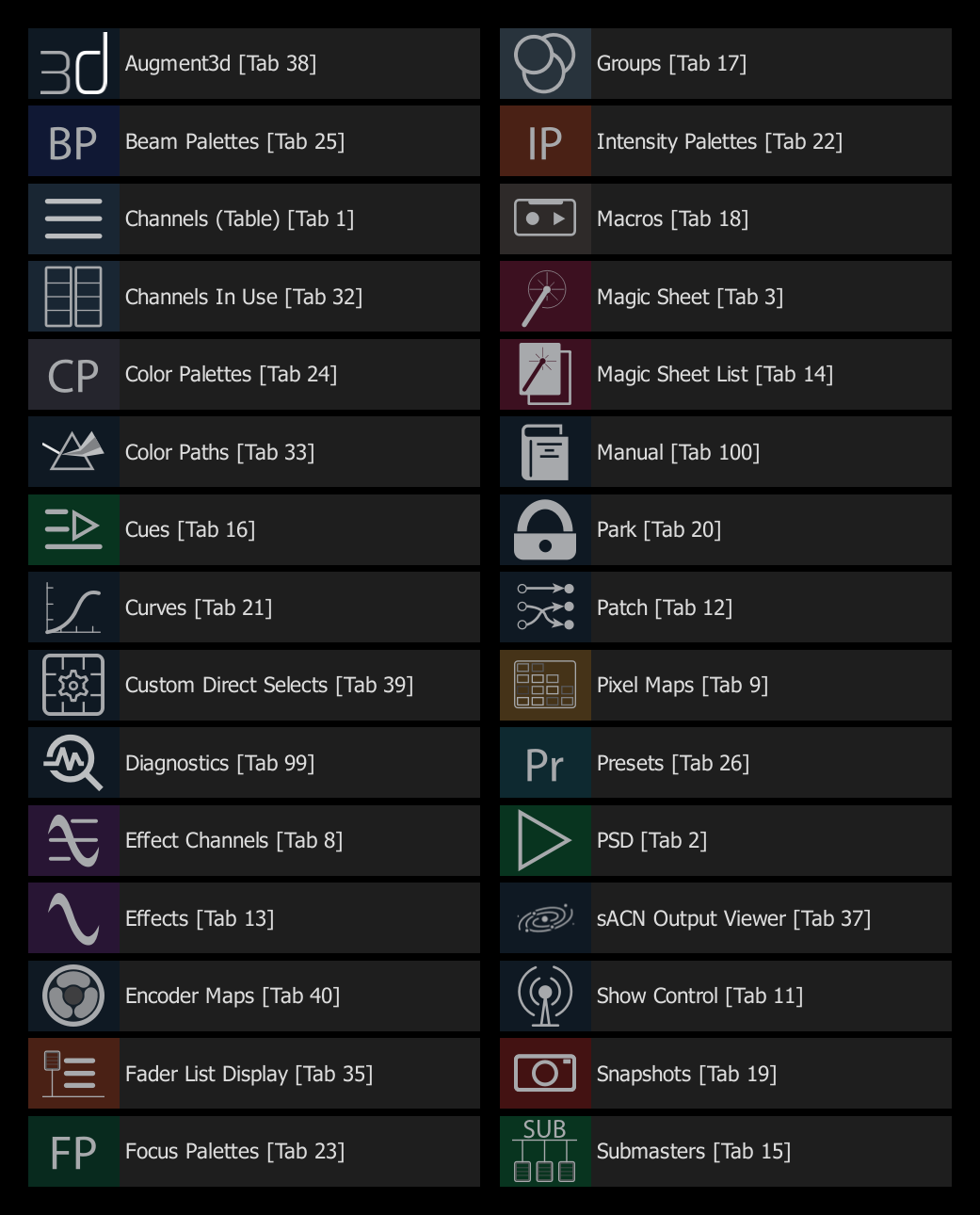

Display tabs are the various displays available on the console, such as the playback status display and the park display. The following displays can be selected, and they will open in a new tab in the selected frame:

The following displays can have multiple instances open:

Control Tabs

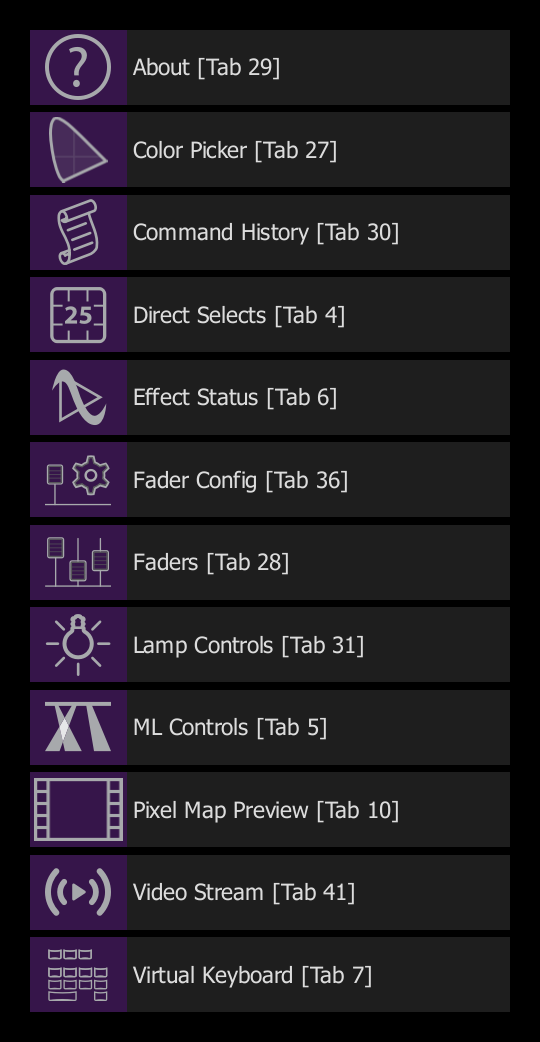

Control tabs are the virtual control options, such as the color picker and the virtual keyboard. Select from the following list of virtual controls, and they will open in a new tab in the selected frame:

Single-clicking on a control tab will bring it to the front of the frame but will not move focus to that tab unless the tab’s frame already has focus. Double-click to bring it to the front and grab focus.

Tab Numbers

All tabs have fixed numbers under which they open. These numbers appear in the Workspace Layout Menu next to each icon. For multiple instances of the same display, the tab number will be followed with a decimal number. Additional tabs will start their numbering with n.2. When you press [Tab], active focus will move chronologically through all open tabs on active workspaces.

  1. Live and Blind [Tab 1]
  2. Playback Status Display (PSD) [Tab 2]
  3. Magic Sheet [Tab 3]
  4. Direct Selects [Tab 4]
  5. ML Controls [Tab 5]
  6. Effect Status [Tab 6]
  7. Virtual Keyboard [Tab 7]
  8. Effect Channels [Tab 8]
  9. Pixel Map [Tab 9]
  10. Pixel Map Preview [Tab 10]
  11. Show Control [Tab 11]
  12. Patch [Tab 12]
  13. Effects [Tab 13]
  14. Magic Sheet List [Tab 14]
  15. Submasters [Tab 15]
  16. Cues [Tab 16]
  17. Groups [Tab 17]
  18. Macro Editor [Tab 18]
  19. Snapshots [Tab 19]
  20. Park [Tab 20]
  21. Curves [Tab 21]
  22. Intensity Palettes [Tab 22]
  23. Focus Palettes [Tab 23]
  24. Color Palettes [Tab 24]
  25. Beam Palettes [Tab 25]
  26. Presets [Tab 26]
  27. Color Picker [Tab 27]
  28. Faders [Tab 28]
  29. About [Tab 29]
  30. Command History [Tab 30]
  31. Lamp Controls [Tab 31]
  32. Channels In Use [Tab 32]
  33. Color Path [Tab 33]
  1. Fader List [Tab 35]
  2. Fader Configuration [Tab 36]
  3. sACN Output Viewer [Tab 37]
  4. Augment3d [Tab 38]
  5. Custom Direct Selects [Tab 39]
  6. Encoder Maps [Tab 40]
  1. Diagnostics [Tab 99]
  2. Manual [Tab 100]
