    Response Merger

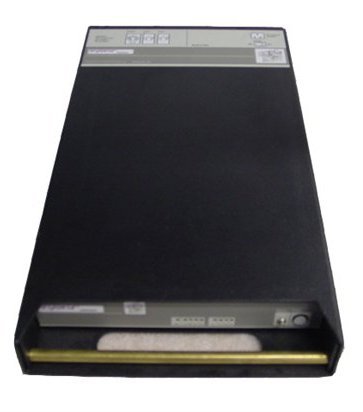

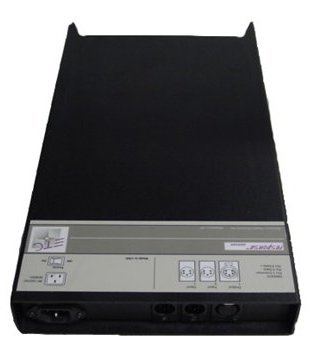

    Merger1Merger 2

    The Response Merger combines two incoming DMX-512 signals into a single DMX-512 output signal. This allows two DMX devices to control the same lights with highest level taking priority (HTP) on a channel by channel basis.



    DMX DATA PINOUT
    1 COMMON
    2 DATA -
    3 DATA +

    Data Loss Behavior
    Hold time is 3 min 45 Sec with a 3 min 45 Sec fade

    JUMPERS
    CUSTOM PATCH--REMOVE JUMPER FROM J8, POSITION 5

    MERGER LEDS


    Port 1 Valid DataHOn
    Port 1 Data ErrorGOn

    Port 2 Valid DataFOn
    Port 2 Data ErrorEOn

    Output Data OKDFlashing
    Output ErrorCFlashing

    Not UsedB
    Not UsedA
