    Response 96 Out


    Response 96out


    The Response 96 Out (also known as an L86-EMDA) was a Demultiplexer unit that converted either DMX512, AMX192, D192 or K96 control data to 0-+10V analog. It provided 96 channels of analog output.

    Data Input Selection

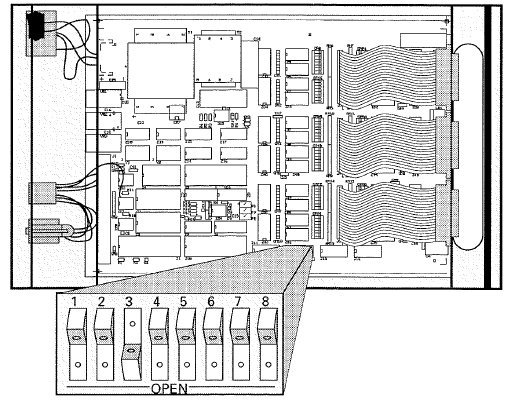

    The type of input is defined using DIP switches inside the unit.

     DIP


    ModeSwitch 1Switch 2
    DMX512OpenOpen
    AMX192OpenClosed
    D192ClosedOpen
    K96ClosedClosed

    Addressing

    The start address is set using rotary switches on the front of the unit. The switches do not correspond to DMX address but are a multiple of 6 plus 1. Outputs are always consecutively numbered. After changing the address you must reset the unit.

    Analog Outputs

    Outputs are 0-+10V analog only, on a set of 3 Centronics connectors. Each output can drive up to 10mA current with a maximum of 250mA for the entire board.

    Connector 1
    Pins 1-32 = Dimmers 1-32

    Connector 2
    Pins 1-32 = Dimmers 33-64

    Connector 3
    Pins 1-32 = Dimmers 65-96

    All Connectors
    Pins 33-34 = Not Connected
    Pins 35-36 = Common

    Centronics



    RESPONSE 96 OUT

    DMX/D192/K96 DATA PINOUT
    1COMMON
    2DATA -
    3DATA +



    AMX DATA PINOUT
    1COMMON
    2CLOCK +
    3CLOCK -
    4ANALOG



    ANALOG OUTPUT PINOUT
    1-32CHANNELS (1-32)
    35-36COMMON



    ADDRESSING
    Starting Output numbers can be calculated as shown:

    [(1st Output# + 5)/6] = Wheel Setting

    i.e. [(13+5)/6]= 03

    Outputs are prime numbers.

    AddressOutput
    0001
    0101
    0207
    0313
    0419
    0525
    0631
    0737
    0843


    and so on...

    DIP SWITCHESSW1SW2FILTERSSW7SW8
    DMXOPENOPENNONEOPENOPEN
    AMXOPENCLOSEDSMALLCLOSEDOPEN
    D192CLOSEDOPENMEDIUMOPENCLOSED
    K96CLOSEDCLOSEDLARGECLOSEDCLOSED



    SELF TESTS
    92CHASE
    93FADE ALL
    94FADE CHASE
    95SELECTED OUTPUT TO FULL
    96ALL TO PERCENT





    TRIM POTS
    P1AMX MAX
    P2FULL ADJUST
    P3ZERO ADJUST



    NOTES

    • Addressing: [(1st Output# + 5)/6]  i.e. [(13# + 5)/6]= 03
    • Jumper A off for Opto-isolation (not for AMX)
    • Trims are interactive
    • 10 mA /output with 250mA/unit max.
    • 12Vdc max.
