    Response 32 Out

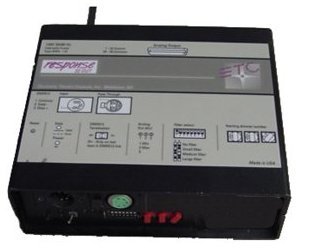

    The Response 32 out was a compact 32 channel digital to analog (de-multiplexer) unit. The standard 32 out accepted DMX-512 only; the A32 out could also receive AMX.

    DMX address was set with three thumb wheels on the front panel. Analog input is via a Centronics type connector.

    RESPONSE 32 OUT/A32 OUT

    DMX DATA PINOUT
    1 COMMON
    2 DATA -
    3 DATA +

    AMX DATA PINOUT
    1 COMMON
    2 CLOCK +
    3 CLOCK -
    4 ANALOG

    ANALOG OUTPUT PINOUT
    1-32 CHANNELS (1-32)
    35-36 COMMON

    DATA TYPE SELECTION
    DMX SW1 UP, SW3 DN
    AMX SW1 DN, SW3 UP

    FILTERS
    NONE  SW5 DN, SW6 DN
    SMALL  SW5 DN, SW6 UP
    MEDIUM SW5 UP, SW6 DN
    LARGE  SW5 UP, SW6 UP

    SELF TESTS
    910 CHASE*
    920 FADE ALL*
    930 FADE CHASE*
    940 SELECTED OUTPUT TO FULL
    950 ALL TO PERCENT
    960 ALL TO DMX LEVEL

    TRIM POTS
    RIGHT AMX MAX
    CENTER FULL ADJUST
    LEFT ZERO ADJUST

    NOTES

    • Self tests with * use third digit for speed
    • Address at specific dimmer number
    • Trims are interactive
    • 5mA/output, 160mA/unit
    • 0-3vdc min. level, 5-12vdc max. level
