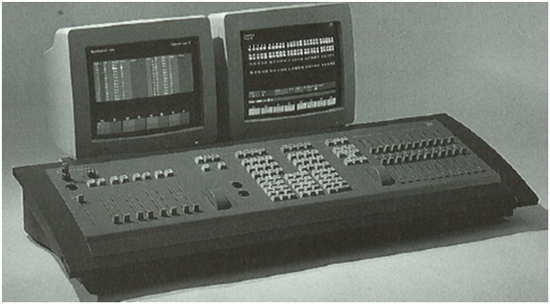

    Obsession I


    The Obsession (now generally known as Obsession 1 to differentiate it from Obsession 2) was a console produced by ETC from around 1992 to 1997, being obsoleted by the introduction of the Obsession 2. It was a natively tracking console with support for cue-only modes of operation.

    There were two console variants, the Obsession 600 and the Obsession 1200. The 600 and 1200 refer to the number of channels available. Both consoles support up to 1024 Dimmers, via three physical DMX outputs.

    Other accessories that worked with the console included a Designers Remote Console (DRC), the Net1 RVI, a Remote Focus Unit(RFU) and a Touchpad RFU.

    The console supported /Support/Articles/Consoles/Legacy-Consoles/ for network communication and could work as a tracking backup pair with a second console.

    Configuring Obsession Networking and Tracking

    The Obsession 1 uses either a BNC(Thinnet) or RJ45(10baseT) connection for networking. To configure which connector is used you need to alter jumper or dip switch settings inside the console. The changes you need to make depend on the revision of your console's serf board; the revision number is visible on the board.

    There are also DIP switches to configure redundant tracking.

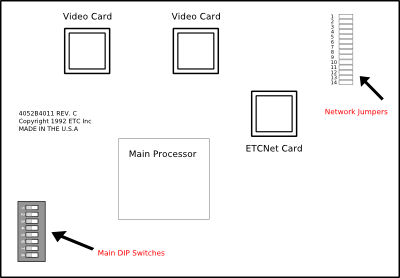

    Revision C Serf Board

    Revision C Serf Board

    Main DIP Switch Settings :

    SwitchDefault PositionFunction
    1OffFactory Use Only
    2OffUnused
    3OffUnused
    4OffUnused
    5OffUnused
    6OffConsole mode on startup if tracking. On = Backup, Off = Master
    7OffFull Tracking Backup. On = Tracking Enabled, Off = Tracking Disabled
    8OnNetwork installed. On = Yes, Off = No

    The net jumpers define which network connection is used, BNC (ThinNet) or RJ45 (10BaseT).

    ThinNetInstall jumpers 1 through 6 only
    RJ45/10BaseTInstall jumpers 7 through 12 only

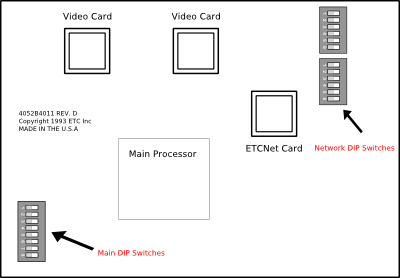

    Revision D and E Serf Boards

    Revision D and E Serf Boards

    On revision D and E Serf Boards, the network jumpers are replaced by DIP switches.

    The network DIP switches define which network connection is used, BNC (ThinNet) or RJ45 (10BaseT). The operation of the main DIP switches is the same for both boards.

    ThinNetBack 6 DIP switches turned on only
    RJ45/10BaseT

    Front 6 DIP switches turned on only
