    Expression/Insight Controls

    ATTACHMENTS:



    The Expression line of consoles was produced for mid-range performance spaces until 2007, when they were supplanted by the Ion and Element console ranges. They run the same software versions (though a different actual file) to the Express consoles, but have a wider range of hardware (such as moving light encoders) and higher numbers of controllable dimmers.

    Insight consoles have identical functionality to Expression consoles but with higher fader counts, leading to lasting popularity in the film and TV lighting markets.

     Expression consoles support remote video output and DMX output from Net1 RVIs and RIUs, as well as ETCNet2 Video and DMX nodes running in Net1 mode.

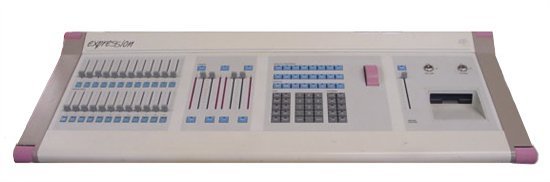

    Expression

    Expression Image

    FEATURES

    • 24 manual faders that control programmed submasters.
    • Two pages of submaster memories, each of which can hold up to 24 recorded submasters.
    • 250 Control Channels
    • Proportional control channel softpatch that accommodates up to 512 dimmers (or 1,024 if you have the optional second DMX512 connector).
    • 400 cue capacity per show.
    • Disk drive used to store shows on 3.5-inch disks.
    • Two independent, timed fader pairs used to play back recorded cues.
    • Multipart cues, macros, subroutines, and effects to help automate complex tasks and key sequences.
    • Support for optional features: Designer's Worksheet, Remote Focus Unit, MIDI, Real Time CLock, Serial Button Protocol, Redundant Tracking Mode, Infrared Remote Focus Unit, and Remote Submasters and Macros.

    Optional expanded memory allows these additional features:

    • Alphanumeric keyboard capability.
    • Flexichannel display option.
    • Group sheet.
    • Submaster sheet
    • Expanded macro capacity

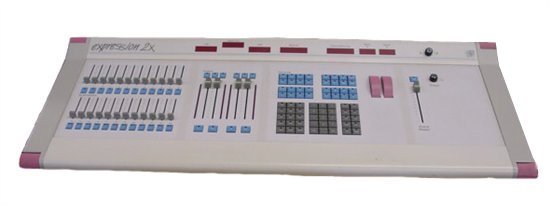

    Expression 2X

    Expression 2X

    Features

    • Preset style operation
    • 1536 DMX dimmers/attributes
    • 400, 800 or 1200 channels
    • 100 Focus points
    • 600 Cues
    • 500 Groups
    • 2000 Macros
    • Moving Light controls
    • LTP (Latest Takes Precedence) Channels
    • Spreadsheet Editing
    • Ethernet for DMX, Video and other signal distribution
    • SMPTE, MIDI Timecode
    • MIDI, MIDI show control
    • Supports ETCLink Dimmer feedback
    • Optional Full Tracking Backup

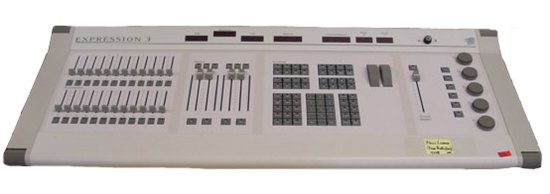

    Expression 3

    Expression 3 Image

    Features

    • Preset style operation
    • 1536 DMX dimmers/attributes
    • 400, 800 or 1200 channels
    • 100 Focus points
    • 600 Cues
    • 500 Groups
    • 2000 Macros
    • Moving Light controls
    • LTP (Latest Takes Precedence) Channels
    • Spreadsheet Editing
    • Ethernet for DMX, Video and other signal distribution
    • SMPTE, MIDI Timecode
    • MIDI, MIDI show control
    • Supports ETCLink Dimmer feedback
    • Optional Full Tracking Backup

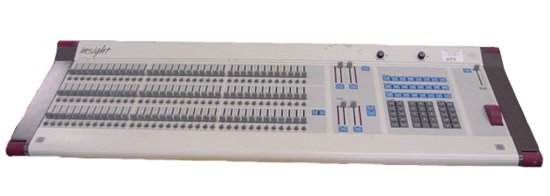

    Insight

    Insight Image

    Features

    • 72 or 108 manual faders that control both individual control channels and programmed submasters.
    • Two pages of submaster memories, each of which can hold a full set of recorded submasters.
    • 72 or 108 control channels.
    • Proportional control channel softpatch that accommodates up to 512 dimmers (or 1024 if you have the optional second DMX512 connector).
    • 200 cue capacity per show.
    • Disk drive used to store shows on 3.5-inch disks.
    • Two independent, timed fader pairs used to playback recorded cues.
    • Multipart cues, macros and effects to help automate complex tasks and key sequences
    • support for optional features: Designer's Worksheet, Remote Focus Unit, MIDI, Real Time Clock, Serial Button Protocol, Redundant Tracking Mode, Infrared Remote Focus Unit, and Remote Submaster and Macro panels.

    Optional expanded memory allows these additional features:

    • Alphanumeric keyboard capability.
    • Flexichannel display option.
    • Group sheet.
    • Submaster Sheet.
    • Expanded macro capacity.
    • Expanded Designer's Worksheet options.

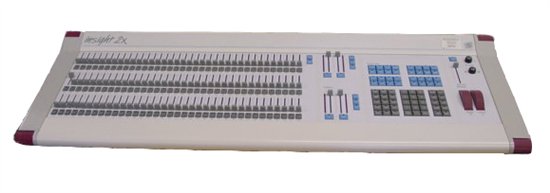

    Insight 2X

    Insight 2X image

    Features

    • 1536 DMX dimmers/attributes
    • 512 channels
    • 10 pages of 108 submasters
    • 100 Focus points
    • 600 Cues
    • 500 Groups
    • 2000 Macros
    • Moving Light controls
    • LTP (latest takes precedence) Channels
    • Spreadsheet Editing
    • Ethernet for DMX, Video and other signal distribution
    • SMPTE, MIDI Timecode
    • MIDI, MIDI Show Control
    • Supports ETCLink Dimmer feedback
    • Optional Full Tracking Backup

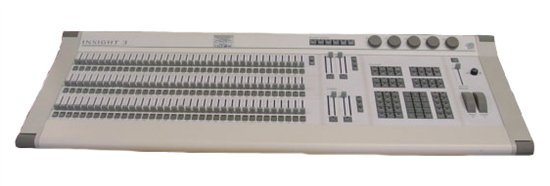

    Insight 3

    Insight 3 Image

    Features

    • 1536 DMX dimmers/attributes
    • 512 channels
    • 10 pages of 108 submasters
    • 100 Focus points
    • 600 Cues
    • 500 Groups
    • 2000 Macros
    • Moving Light controls
    • LTP (latest takes precedence) Channels
    • Spreadsheet Editing
    • Ethernet for DMX, Video and other signal distribution
    • SMPTE, MIDI Timecode
    • MIDI, MIDI Show Control
    • Supports ETCLink Dimmer feedback
    • Optional Full Tracking Backup
