Display Tools

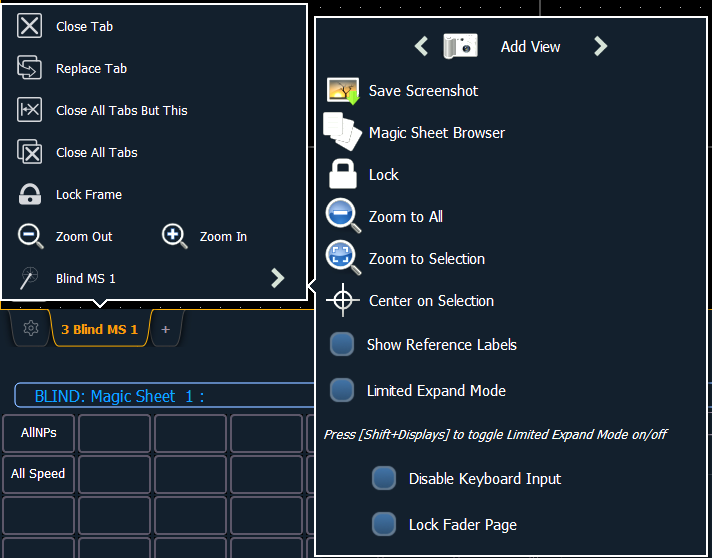

The display tools for Magic Sheets are available by either right-clicking or double tapping on the Magic Sheet's tab. The tab will also indicate if the Magic Sheet is in Live or Blind.

These tools include:

• Add View - different views of the same magic sheet can be saved and recalled. Zoom and pan the display to change the view, and then click {Add View} to save. To change views, you can use the arrows in the display tools or multi-touch gestures. You can also press {Magic Sheet} [1] [/] [2] [Enter] to view Magic Sheet 1, View 2. See Multi-Touch Gestures
• Save Screenshot - saves a .png screenshot of the magic sheet to a hard drive or an attached USB drive.
• Magic Sheet Browser - opens the magic sheet browser, which displays thumbnail images and labels for the created magic sheets. The browser can also be opened using multi-touch gestures. See Multi-Touch Gestures
• Lock - locks the magic sheet so it cannot be zoomed or panned. This is useful for a customized direct select layout, where you want the buttons to always be in the same spot.
• Zoom to All - zooms to show all objects.
• Zoom to Selection - zooms to show all selected objects.
• Center on Selection - centers the display on the selected objects without changing the zoom level.
• Show Reference Labels - when enabled, channel objects that reference record targets (such as presets or palettes) with labels will have their labels displayed in the Magic Sheet rather than their target type and number. [About] & [Label] can be used to temporally toggle between views.
• Limited Expand Mode - allows a magic sheet to be displayed at fullscreen. See Limited Expand Mode for more information.

  The following options are only available while in Limited Expand Mode:

  • Disable Keyboard Input - disables input from the face panel and an external keyboard. Fader and macro buttons will still work.
  • Lock Fader Page - locks the fader page to the currently displayed one.
