Wall Partitions

Divide and combine a Primary Space or sub-space through a wall partition. When walls are open, controls in the sub-spaces operate together. When walls are closed, the sub-spaces return to normal independent operation.

Walls are displayed in the Design and Program/Simulate views as a dark black line separating sub-spaces. The wall indicates the actual moving wall partition in the space dividing control of the individual sub-spaces.

Walls are listed in the Browser as a shared resource of the space containing them.

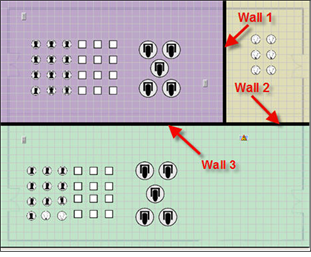

In the graphic above:

wall 1 combines the purple and yellow sub-spaces
wall 2 combines the yellow and green sub-spaces
wall 3 combines the purple and green sub-spaces

Reference "Adding a Wall Partition" for details on how to add walls to primary spaces.
