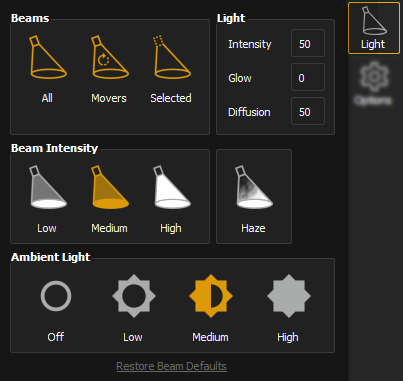

Light Tool

Provides options to configure the simulated light in an Augment3d model. Reset all options to default by clicking Restore Beam Defaults. All light options are also available in Graphics.

Beams

Toggles simulated light beams for all, moving, or selected fixtures.

Light

Intensity adjusts the overall intensity of the simulated light. This option does not alter the actual intensity values of fixtures themselves.

Glow and Diffusion control the degree to which objects in the scene glow. These options only apply in High and Ultra quality.

Beam Intensity

Toggles between low, medium, and high intensity simulated beams. Toggle Haze on to increase the realism of the beams.

Ambient Light

Toggles between no, low, medium, and high overall ambient light levels in the Augment3d model.
