Contact Interfaces

Echo Contact Interfaces are DIN rail mounted devices that are available in four input or four output configurations.

  • Input Interface - accepts four momentary or maintained closures to trigger control actions within an Echo system.
  • Output Interface - provides four normally open or normally closed output relays controlled by actions in the Echo system.

Contact Interfaces have a front panel configuration mode switch which allows selection between Basic and Custom configurations of the Contact Interface. Configuration settings done in the EchoAccess App will not take effect unless the switch is set to Custom configuration. See the Unison Echo Contact Interfaces Installation Guide for information about the default behaviors of Contact Interfaces in Basic and Custom configuration.

Contact Interfaces have front panel rotary switches that select Space and Address/Zone. See the Unison Echo Contact Interfaces Installation Guide for more information on default settings. All ETC documentation is available for free download from etcconnect.com.

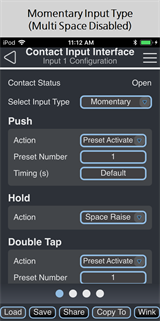

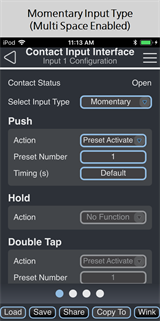

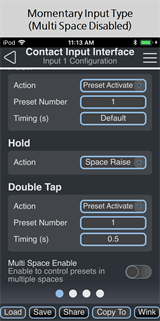

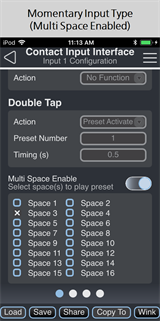

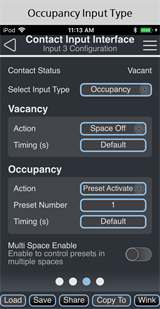

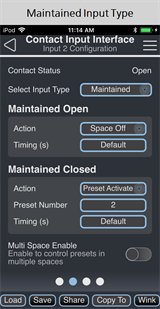

Contact Input Interface

Each input (1 through 4) has its own configuration screen. Swipe left or right to access other inputs.

Contact Status

A read-only display of Open or Closed state

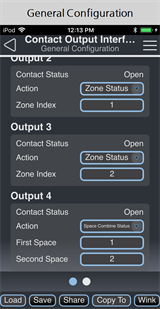

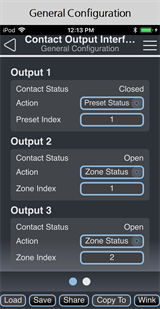

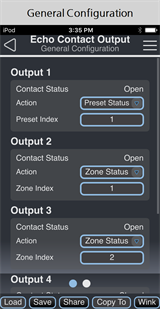

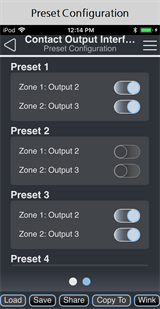

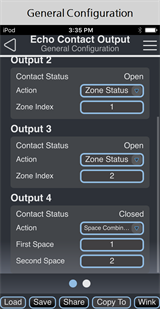

Contact Output Interface

Use the available drop-down menus and keypad to specify the desired configuration information. Additional configuration options will display depending on the selected Action (e.g. if an Action is set to Preset Status, Preset Index will display for additional specification).

Contact Status

A read-only display of Open or Closed state.

Configuration Sharing

Five buttons are available at the bottom of the configuration screen.

Note:  Share is only available in the EchoAccess Mobile App.
