  • S P E C I F I C A T I O N S
    GENERAL
    • Mosaic MSC1 --512 channel output
    • Mosaic MSC2 --1024 channel output
    • Mosaic MSC4 --2048 channel output
    • Support for DMX512/RDM, sACN, ETCNet2, KiNet, Pathport, or Art-NetII output --One protocol may be used for each 512 channel segment
    • Integrated real and astronomical time clock
    • Triggering and show control integration using Ethernet, RS232/485, DMX, MIDI and digital/analog inputs
    • Integrated web server for remote management
    • Programmed and configured using Unison Mosaic Designer Software
    • Simple integration with other Mosaic devices for large systems including MSC X and Audio Video Controller (AVC)
    FUNCTIONAL
    • Scalable up to 40 Mosaic Show Controllers using standard Ethernet networking
    • Project data stored in non-volatile, solid-state memory
    • Resumes output automatically upon receiving power
    • Supports conditional logic and scripting for powerful integration
    • Software and configuration upload using USB or Ethernet
    • Integrated web server provides with active monitoring and remote triggering using Ethernet or USB
    • Remote management and upload of configuration using RemoteManager software application
    MECHANICAL
    • 8 unit wide DIN Enclosure
    • Mounting complies with DIN43880 and EN60715 (35/7.5 rail)
    • All connections use standard pluggable connectors
    ELECTRICAL
    • 9V to 48V DC power input
    • Supports PoE power input (IEEE 802.3af)
    • Isolated DMX512 ports
    • RDM Compatible
    • Eight individually selectable digital or analog inputs - Support active high, active low, or contact closure
    • 10/100Base-TX Ethernet using RJ45 connection
    • RS232/485 Serial or DMX triggering using 3-pin connector
    • MIDI input using 5-pin DIN connector
    • MIDI output using 5-pin DIN connector
    • ETL and cETL Listed, CE compliant
    THERMAL
    • Ambient room temperature: 0-50°C / 32-122°F.
    PHYSICAL

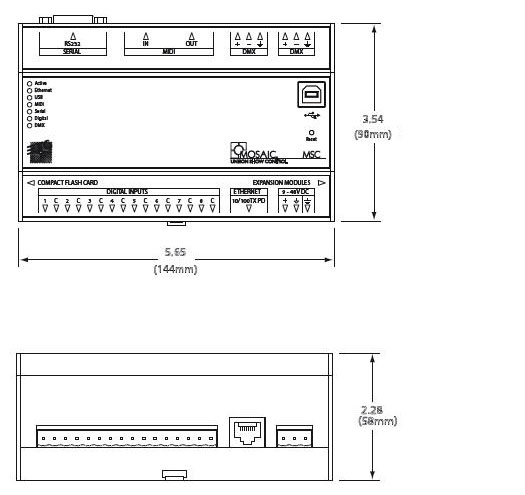

    Unison Mosaic Show Controller Dimensions*
    MODEL HEIGHT WIDTH DEPTH
    inches mm inches mm inches mm
    MSC 3.54 90 5.64 144 2.28 58
    Unison Mosaic Show Controller Weights*
    MODEL WEIGHT SHIPPING WEIGHT
    lbs kgs lbs kgs
    MSC 1 0.48 2 0.85
    *Weights and dimensions typical

    Mosaic MSC

    ORDERING INFORMATION
    Unison Mosaic Show Controller
    MODEL DESCRIPTION
    MSC1 Unison Mosaic 512 Channel Show Controller
    MSC2 Unison Mosaic 1024 Channel Show Controller
    MSC4 Unison Mosaic 2048 Channel Show Controller
    Unison Mosaic Show Controller Accessories
    MODEL DESCRIPTION
    MRIO-A Mosaic Remote Audio/ Time code Device
    MRIO80 Mosaic Remote I/O Module with 8 inputs
    MRIO44 MosaicRemote I/O Module with 4 inputs and 4 outputs
    MRIO08 Remote I/O Module with 8 outputs
    MSC-NET 5-port Ethernet Switch w/ PoE
    MSC-OPTO 4-port DMX/RDM Opto-Splitter
    MLED-V Mosaic Constant Voltage LED Driver
    MLED-C* Mosaic Constant Current LED Driver
