Processor View

Selecting the [Processor View] button displays a gauge and bar graph with estimated data for the filtered selection, meaning if the Server Project is the selection or if a sub-project is the selection. The gauge provides an overall estimation of the processor level object and resource limitations against the capacity. Reference System Requirements and Capabilities for a list of the acceptable limitations of each.

When the key objects and resources are within their own limitations and within the capacity of the processor, the gauge displays in blue. See Gauge and Bar Graph Overview for guidance on understanding the displayed data.

Tip: When the limits of objects and resources for a Server Project or a processor are exceeded, the gauge and the bar graph for that item indicate in red.

With the Server Project selected, the Central Control Server parameters are shown in the estimator view.

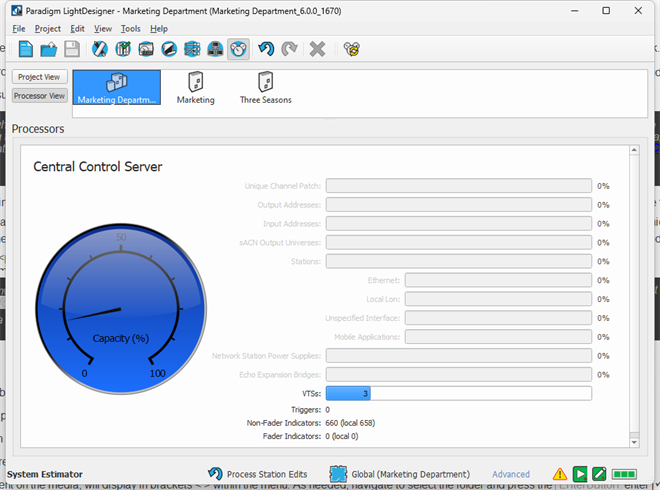

System Estimator, Processor View, Server Project

With a sub-project selected, each of the Paradigm Processors in the sub-project is shown with its parameters in the estimator view.

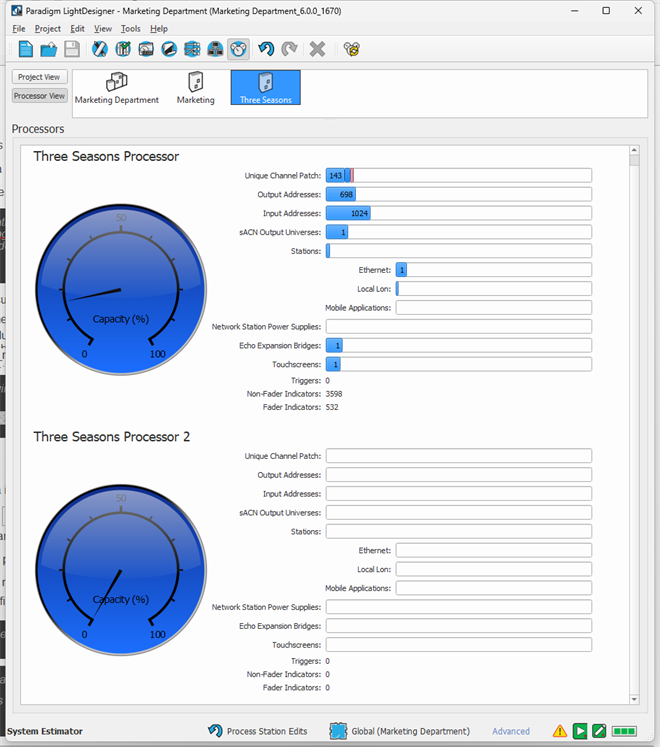

System Estimator Processor View, Sub-Project

  • Unique Channel Patch - a red stripe color code indicates any Echo Zones that are also patched to the Paradigm Processor and utilizing the available channel capacity

    System Estimator Unique Channel Patch

  • Output Addresses
  • Input Addresses
  • sACN Output Universes - limited to 10 when DMX ports are at their maximum Output Addresses
  • Stations- includes all connected Ethernet, Local Lon, Mobile Application, and Mosaic Integration
    • Ethernet - the quantity of Ethernet connected stations
    • Local Lon - the quantity of LinkConnect stations
    • Station Power Supply # - includes each P-NSPS-D configured to the processor with the number of devices that are connected. These device counts are also included in the overall Stations count above.
    • Unspecified Interface - this statistic identifies the number of devices that aren't specified for a dedicated Interface property (either Local Lon or a configured P‑NSPS‑D)
    • Mobile Applications - the number of configured Mobile Button Stations
  • Network Station Power Supplies - the number of configured P‑NSPS‑D associated with the processor
  • Echo Expansion Bridges - the number of configured EEBs associated with the processor
  • Touchscreens - the number of configured touchscreens associated with the processor
  • Triggers - the number of triggers associated with the processor
  • Non-Fader Indicators - the number of non-fader indicators associated with the processor
  • Fader Indicators - the number of fader indicators associated with the processor
