System Events (MIDI Show Control)

System commands allow you to specify specific MIDI Show Control messages that can be received and interpreted by the console. While any MIDI Show Control command that matches the configured Device ID will be executed normally, this type of event setup allows you to respond to messages sent to different device IDs, or take additional actions based on a show control command.

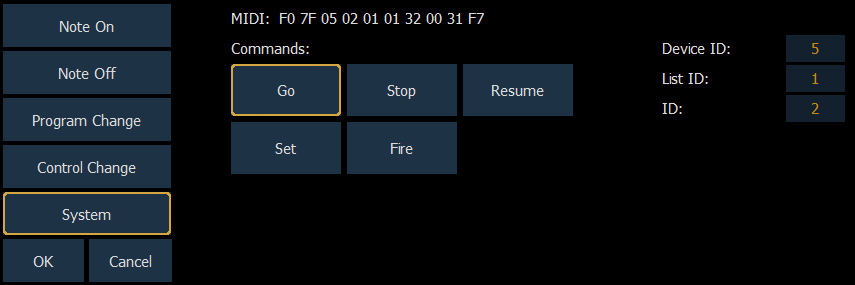

The MIDI data that is expected to be received is shown in the CIA and changes as you select event parameters. When finished configuring the system event, press {OK} to store the event. Otherwise, press {Cancel} to undo the changes.

Message Structure

see Hexadecimal and MIDI Show Control Formatting on the show control message structures.

Options

The following command options are available:

• Go, Stop, Resume - represents triggering a cue, stopping a cue, and resuming a cue, respectively. The following fields are available:
  • Device ID - the MIDI Show Control device ID that should respond to the message.
  • List ID - the cue list.
  • ID - the cue number.
• Fire – represents executing a macro. The following fields are available:
  • Device ID – the MIDI Show Control device ID that should respond to the message.
  • ID - the macro number to be fired.
• Set - represents controlling a fader. The following fader targets are available:
  • Subs
  • Grandmaster
  • Master Fader Up - the level of the Up fader on the master playback pair.
  • Master Fader Down - the level of the Down fader on the master playback pair.

The following fields are available for the fader targets:

• Device ID – the MIDI Show Control device ID that should respond to the message.
• ID (subs only) – the number of the submaster fader.
• Level – the specified level of the fader from 0-100% (0-127 decimal, 00-7F hex).
