Edit Mode Tools

The following tools are only available when in Edit Mode.

Grid Tool

Toggles the grid on or off. Also available in Preferences.

Snap Tool

Toggles object snapping to the grid on or off. Also available in Preferences.

Move Tool

Allows you to move objects along the X/Y/Z axes. Handles have conical ends.

Scale Tool

Allows you to resize objects along the X/Y/Z axes. Handles have cubic ends. Use the center handle to resize all dimensions proportionally.

Rotate Tool

Allows you to rotate objects around the X/Y/Z axes.

Local Tool

Toggles Move and Rotate object tools between global XYZ orientation and object XYZ orientation. Scale is always performed relative to the object's Local XYZ orientation.

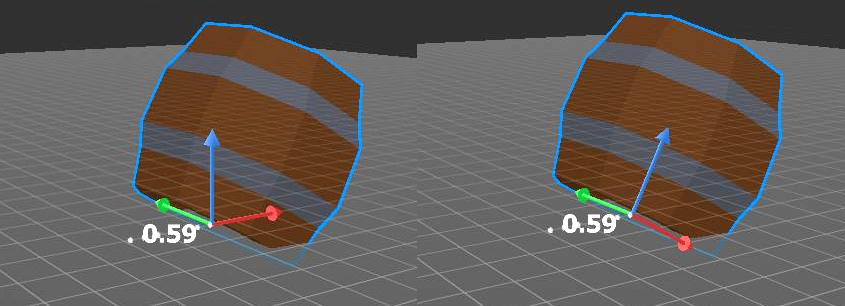

On the left barrel, Local is toggled off, so the Move tool orients itself based on the Augment3d model. On the right, Local is toggled on, so the Move tool orients itself relative to the position of the barrel.
