ColorSource Spot

S P E C I F I C A T I O N S

SOURCE

• 60 Lumileds LUXEON® Rebel LED
• 6,932 Max lumens
• 42.4 Lumens per watt
• L70 rating (hours to 70% output): 54,000 hours (both variants)*

COLOR

• Spot: Red, green, blue, limeSpot DB: Red, green, indigo, lime
• Color mixing
• Calibrated array
• No red shift

OPTICAL

• Swappable lens tubes between 5-90 degrees
• 79-24 mm Gate size
• 6.25”-14” (depending on lens tube) aperture size
• Pattern projection
• A or B Pattern size
• 1,200 Hz (default) and 25,000 Hz (via RDM)
• Can be used with Source Four LED CYC and Fresnel adapters

ELECTRICAL

• 100-240 VAC 50/60 Hz
• powerCON power in and thru
• 28 A at 120 V (First half-cycle)
  46 A at 240 V (First half-cycle)
• 9 fixtures (15 A power thru connector) or 10 fixtures (R20 module or similar)
• 147 W / 1.87 W at 120 V
• 1.24 A at 120 V

THERMAL

• Ambient operating temp: 0°–40° C (32°–104° F)
• Fan (controllable)
• Droop compensation
• 21.2 dBa average at 1 m
• 504.78 BTUs/hour

CONTROLS

• DMX512 via 5-pin XLR connector Input method
• DMX512/RDM
• 4 modes for footprint
• RDM configuration
• UI type: Seven-segment, three-button interface
• Local control
• 12 Onboard presets
• 5 Onboard sequences
• No onboard effects
• Fixture-to-fixture control
• 15-bit virtual dimming engine

*Note about LED luminaire lifetime:
ETC utilizes a nationally recognized third-party lab for luminaire testing according to IES LM-84. See www.etcconnect.com/About/News/ETC-Fixture-Ratings-and-Warranties-Extended.aspx.

PHYSICAL

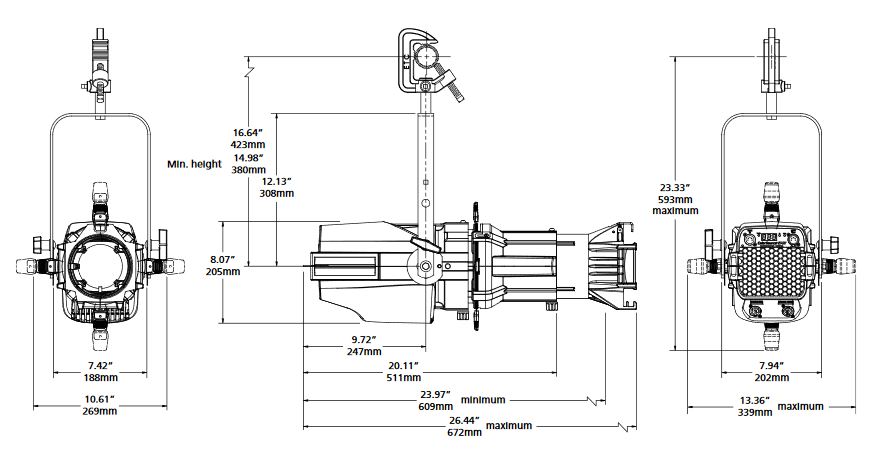

ColorSource Spot Dimensions

ColorSource Spot Weights

* Does not include mounting hardware or lens tube

ORDERING INFORMATION

ColorSource Spot Light Engine with Shutter Barrel
(For use with fixed-field lens tubes only)

ColorSource Spot Light Engine Body
(For use with zoom lens tubes and adapters and for retrofit of existing fixtures)
