Response 96 In

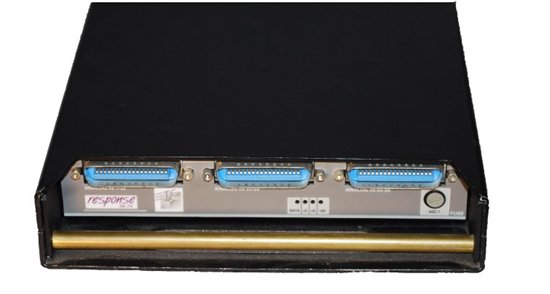

The Response 96 In (also known as an L86-EMAD) was an Analog to Digital Converter that could convert up to 96 channels of 0 to +10V or 0 to -10V analog input to either DMX-512 or D192 digital protocols. It was available in a portable or rack-mount version. The rackmount versions could be slaved together up to a maximum of three units allowing a total of 256 analog inputs to a single digital output.
RESPONSE 96 IN
DMX/D192 DATA PINOUT1 COMMON2 DATA -3 DATA +
ANALOG INPUT PINOUT1-32 CHANNELS (1-32)35-36 COMMON
JUMPERSJ4 DMX/D192J3 POSITIVE/NEGATIVE VOLTAGE
TRIM POTSP2 FULL ADJUSTP1 ZERO ADJUST
SLAVING- RELOCATE J5 AND J6- REMOVE Z4 ON SLAVE UNITS
