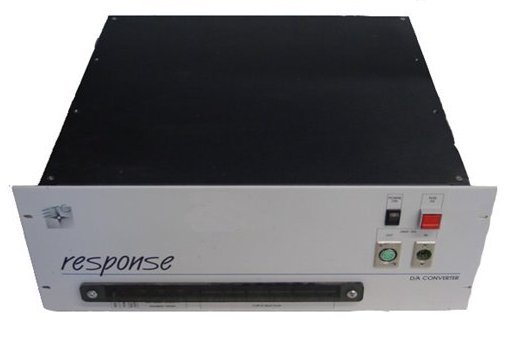

    The Response 512 was a digital to analog converter (DAC) that converted up to 512 channels of DMX512 to Analog 0-10V control.  This is ideal for large retrofits. Due to its impressive size it was colloquially known as the "Moby DAC".

    • It has a 19-inch EIA rack mount.
    • Optional high voltages available.
    • Up to 28V


    RESPONSE 512 OUT

    1 COMMON
    2 DATA -
    3 DATA +

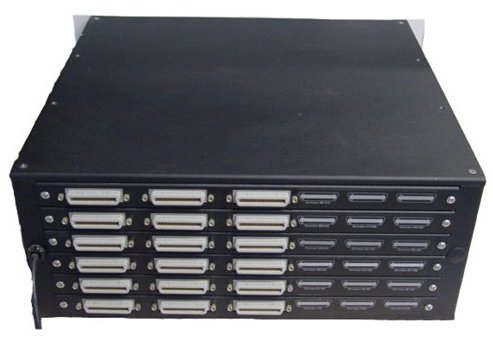

    ANALOG OUTPUT PINOUT
    1-32 CHANNELS (1-32)
    35-36 COMMON

    JUMPERS
    A&B DATA TERMINATION

    TRIM POTS
    R63 FULL ADJUST
    R62 ZERO ADJUST

    NOTES



    • Address=Dim# -1
    • Trims are interactive
    • 1 mA to 10 mA /output, 12 vdc to 28 vdc max.
