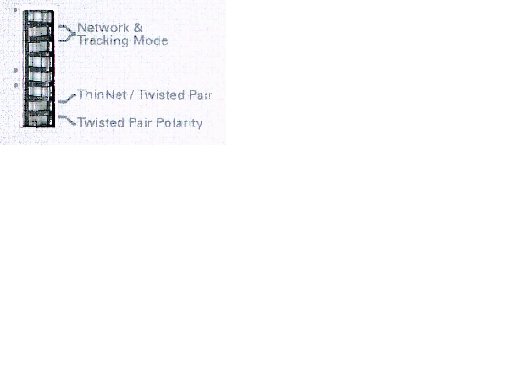

The Thinnet / Twisted pair label is screened opposite of the actual toggle of the DIP switch on the back of Expression 3 and Insight 3 consoles. The manual has the correct settings, but the screening can be a confusing factor. For instance, if you wish to set a console up for twisted pair operation, you must set the switch in the opposite direction of the direction the labeling would seem to indicate. The picture below shows a console set up for twisted pair operation.
