  • Connecting Cobalt, Congo, and Eos Family Consoles to a Visualizer

    Eos Family Console Settings (Including ETCnomad)

    Supported protocols

    Eos Family consoles can output Net2 (EDMX), Net3 (sACN/E1.31), and ArtNet levels via Ethernet. Computers running Eos Family ETCnomad (PC and Macs) can output Net3 (sACN/E1.31) and ArtNet.

    By default, sACN (ratified) and local DMX output is enabled. If you would like to use ArtNet or EDMX, you can turn them on in the Settings menu of the Eos Family welcome screen (a.k.a. "Shell"). You can also set the console to transmit draft sACN from the shell if needed for your system.

    Without an ETCnomad dongle, lighting levels can be transmitted, but these are intended for visualizer use and are not suitable for lighting system control.

    To change settings:

    1. Exit to the shell by pressing [Displays] and choosing {Exit} from the Browser.
    2. You'll see the welcome screen with available options appear after a few seconds.

      If you do not see this screen on a PC, be sure you are starting up using the "Launch Eos Family" shortcut from the start menu or your desktop, and that you have installed the ETCnomad PC version of Eos Family software.

      Offline

    3. Open the Settings menu, then navigate to the Network section. Make sure that the protocol you need for your visualizer is enabled and defaulted. If you are using Capture, ensure that ACN and Net2 are enabled and defaulted.
    4. Settings Menu

    5. Click accept to save your settings, and then choose Primary or Offline w/viz to start the software.
    6. If you select the "Offline w/viz" option from the ETCnomad shell, it is normal to see a slow refresh rate and occasional dropouts while outputting offline. You will be asked to confirm this option each time you launch. If you are using a console or Eos ETCnomad with a dongle, this option will not appear.

      Offline Output

    Cobalt Family Console Settings (Including ETCnomad)

    Supported protocols

    Cobalt Family consoles can output Net2 (EDMX), Net3 (sACN/E1.31), and ArtNet levels via Ethernet. Computers running Cobalt ETCnomad (PC or Mac) can output Net3 (sACN/E1.31) or ArtNet.

    To change settings:

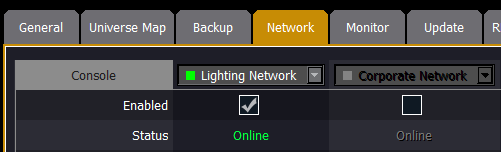

    1. Ensure the correct network is enabled in System Settings.

      Cobalt ETCnomad Enable Network

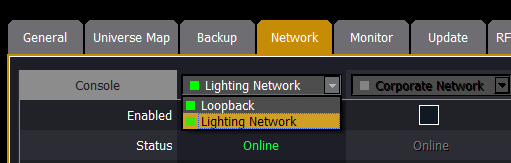

    2. If your PC has multiple network cards, you will also need to select the correct network card in System Settings. This must match your choice in the visualization software.

      Cobalt ETCnomad Select Network

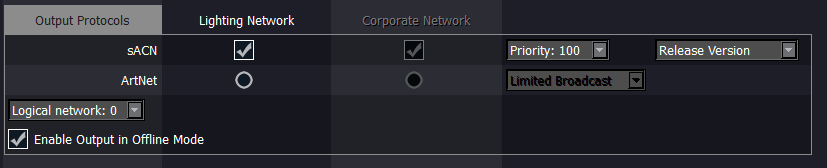

    3. Enable the correct Output Protocol for your visualizer. If you are using Capture, ensure that sACN is enabled. (Note: ETCnomad does not support Net2 and this choice is not visible on devices running ETCnomad.)

      Cobalt ETCnomad Output Protocols

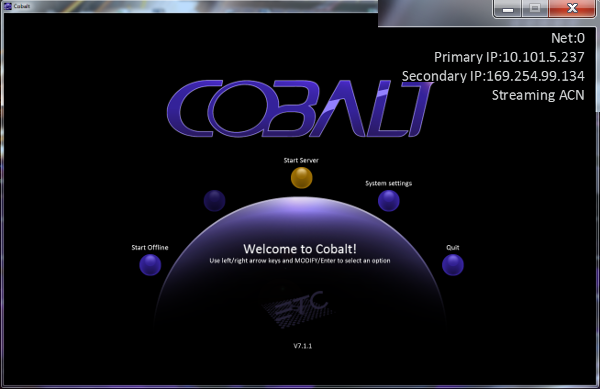

    4. The enabled Ethernet protocol(s) and the IP address(es) are shown top-right of the Welcome screen.

      Cobalt ETCnomad Welcome Screen with Inset

    Congo Family Console Settings

    Supported protocols

    Congo Family consoles can output Net2 (EDMX), Net3 (sACN/E1.31), and ArtNet levels via Ethernet. Computers running CongoPC (PC or Mac) can output Net3 (sACN/E1.31) or ArtNet.

    To change settings:

    1. Ensure the correct protocol is enabled in the Congo System Settings menu.
    2. Congo Settings

    3. The enabled Ethernet protocols and the selected IP address are shown top-right of the Welcome screen.
    4. Congo Welcome

    5. If your PC has multiple network cards (as seen above), you will also need to select the correct network card in System Settings. This must match your choice in the visualization software.
    6. IP Settings

    Troubleshooting

    If you are unsure if your console or computer is sending data, there are free tools available to help you see the sACN or ArtNet levels and sources present on your network.
    Note: These programs are not created or maintained by ETC - we are linking them here for your convenience.

    sACN View

    Main page:  http://sacnview.sourceforge.net/  | Direct download link:  http://sourceforge.net/projects/sacnview/files/latest/download

    The ArtNetominator

    Main page:  http://www.lightjams.com/artnetominator/  | Download page:  http://www.lightjams.com/artnetominator.html#contributeSection

    Connecting to Capture

    Capture can receive many protocols including Net2 (EDMX) and Net3 (sACN/E1.31) levels via ethernet.
    Capture Polar and Capture Argo receive "ratified" sACN/E1.31.

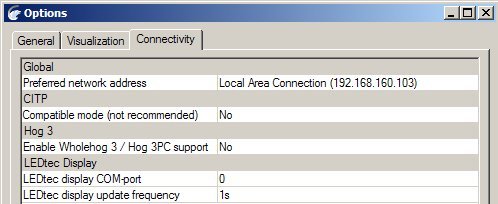

    In the Tools menu of Capture, select Options. Navigate to the Connectivity tab, and select your network interface card if required. Note that depending upon your PC's configuration, a setting of Automatic may not work; in this case select the appropriate adapter.

    Options

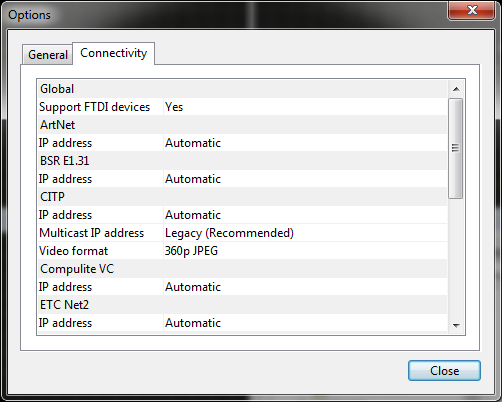

    In Capture Argo, each protocol can have its own IP address selection. Be sure to set the proper IP address for each of the protocols that you are using.

    Capture Argo Connectivity

    A valid network link is required to receive sACN, even if the source is another application on the same PC.
    This means a standalone PC will require either an active connection to an ethernet switch or the "Loopback Adapter" to be installed.

    Following a restart, open your existing project or start a new one.

    In the Project Window, you will see a tab showing Universes. You should see both BSR E1.31 and ETCNet2 Universes, assuming you have any dimmers patched on your console.

    New Project

    Capture executable (presentation) files should also receive these network levels. Note that you may need to install the Capture application in order to use its network adaptor selection tools. Capture is available for download from the Capture website, www.capturesweden.com.

    Connecting to Wysiwyg

    See also:  http://www.cast-soft.com/wysiwyg/tip/view/connecting-to-edmx-networks

    WYSIWYG can receive Net2 (EDMX) levels via ethernet.

    In the Options menu of Wysiwyg, select Application Options and then navigate to the ETC Interface tab. Ensure that
    "Allow EDMX reception" is ticked, and that the ETCNet2 Version is set to V4. Note: You must restart Wysiwyg
    after making this change. You also must be an Administrator on the computer.

    Application Options

    Etc Interface

    EDMX reception has been reported to not function in release 23 and lower under Vista. Contact Cast Lighting for any updates.

    You may need to run an application called NICPicker, which may or may not be packed with Wysiwyg. This application sets which of your network adaptors is used for Net2 traffic. It is available as part of the free download of Network Configuration Editor (NCE) from ETC.

    Note: There are ETCNet2 devices in the Device Manager in Wysiwyg, but these do not function. Allow EDMX reception as shown above to see EDMX levels.

    Other Visualizers

    Any visualizer that can receive the supported network protocols listed above should be compatible. The visualizer program that you choose may also support receiving DMX via a DMX-USB converter, though computers running Eos ETCnomad or Cobalt ETCnomad will only transmit DMX via an ETC Gadget DMX-USB interface. Consult your visualizer's documentation for supported receiving devices.
