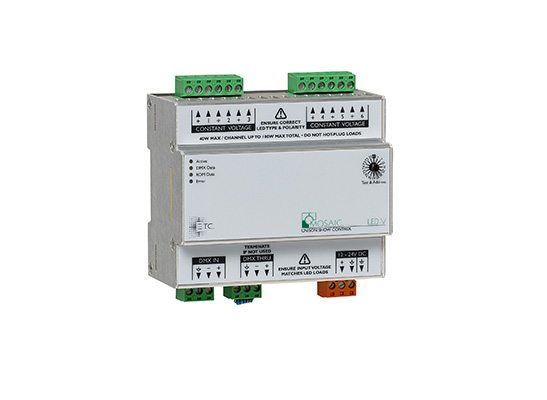

Unison® Mosaic® LED drivers can be used with any DMX controller for direct and efficient control of single-color LED fixtures. With options for both constant current and constant voltage, you can get the right tool to work with your power supply.
The LED drivers offer one power supply input and DMX in and thru, creating six discrete outputs to LED fixtures. Constant-current modules offer a variety of outputs - 350mA, 500mA and 700mA - with inputs from 15 to 48Vdc. Constant-voltage modules run 12 to 24Vdc with a maximum channel output of 40W (180W total power).
These compact drivers fit any installation. They feature manual addressing, fixture test modes and standard DMX protocol, support RDM configuration, and are convection cooled. Mosaic LED drivers are ETL, and CE compliant.
